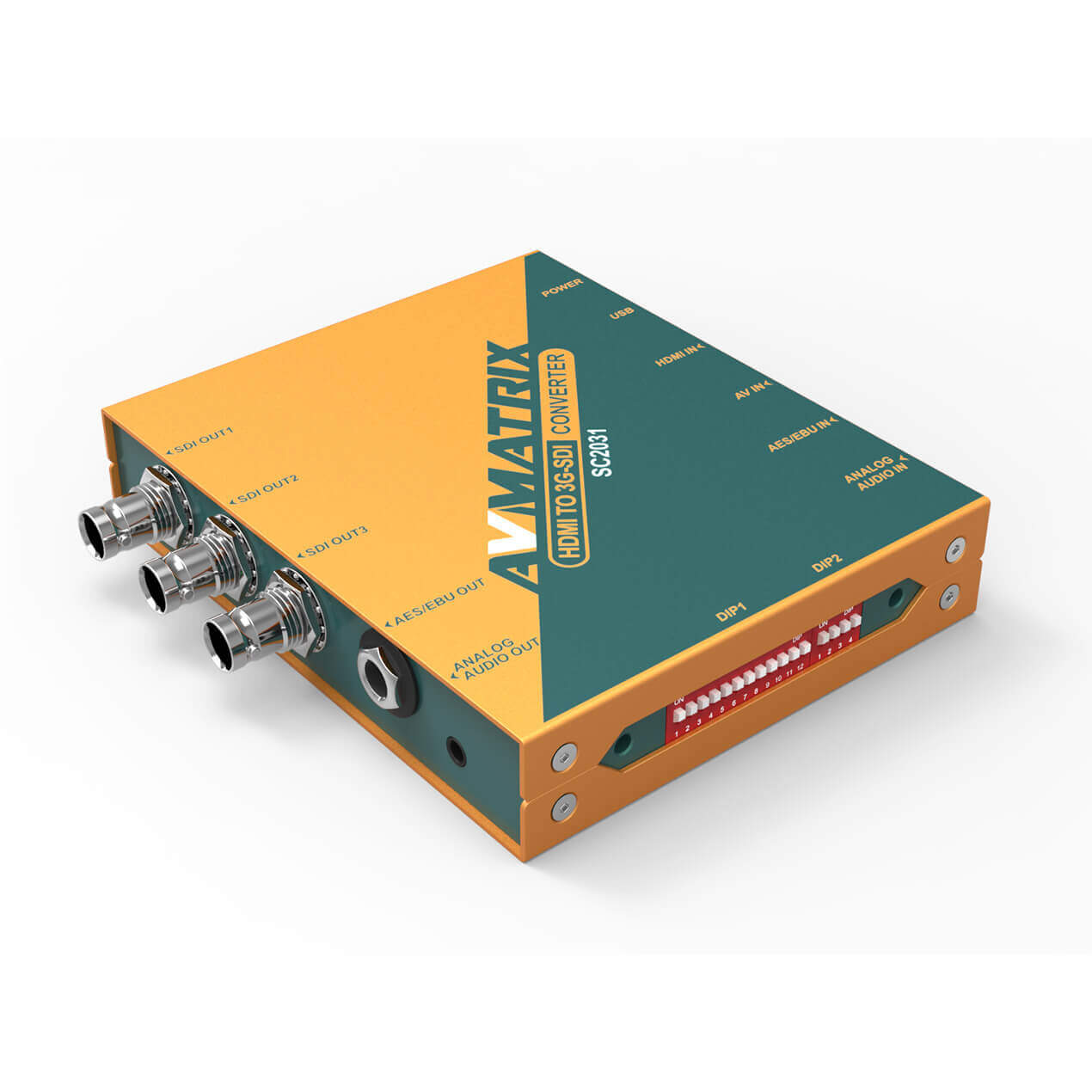

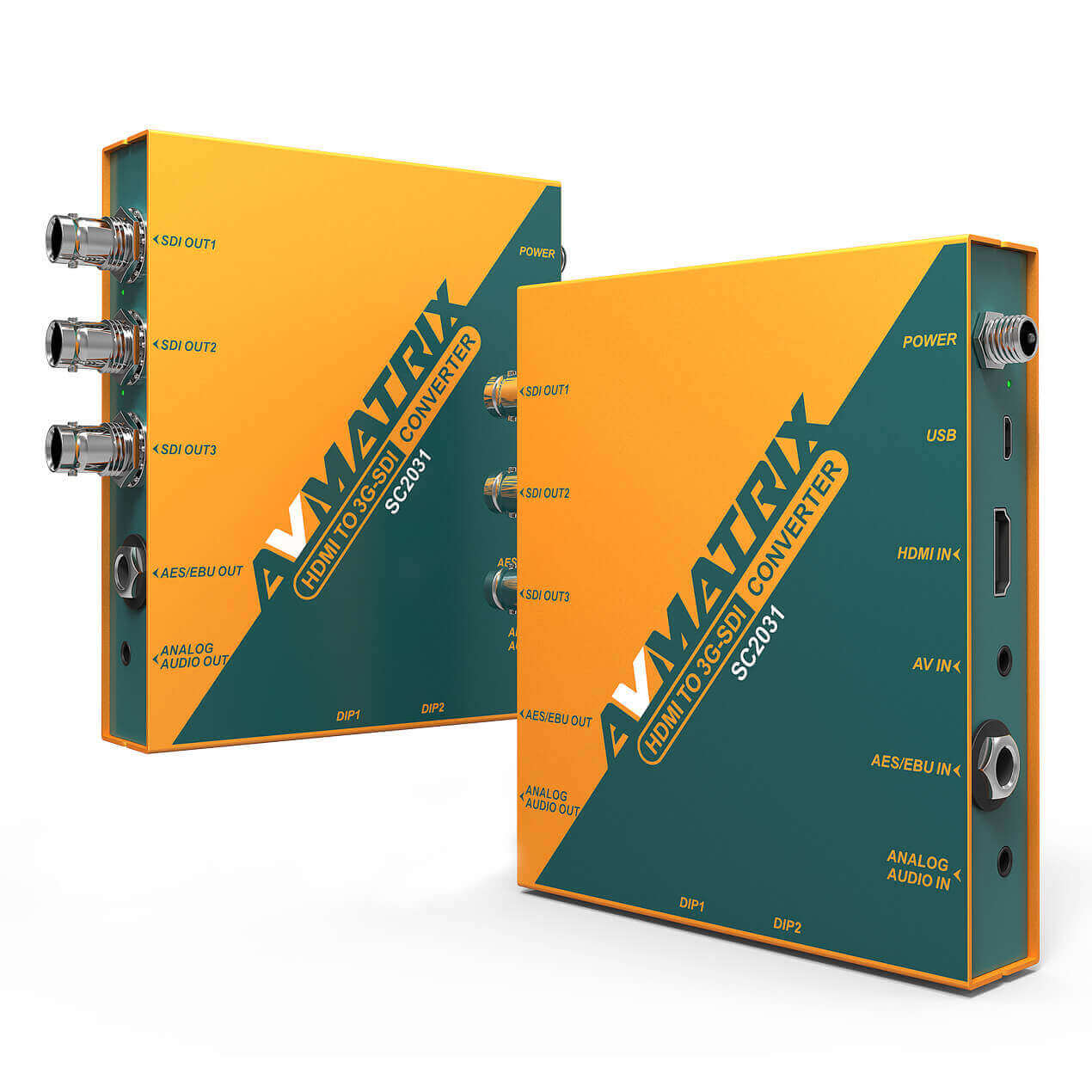

AVMATRIX SC2031 HDMI to 3G-SDI Scaling Converter
SC2031Brand: AVMATRIX
Pret Lei (pret fara TVA) : 483 Lei
Nu exista manuale disponibile pentru acest produs.
AVMATRIX SC2031 HDMI to 3G-SDI Scaling Converter

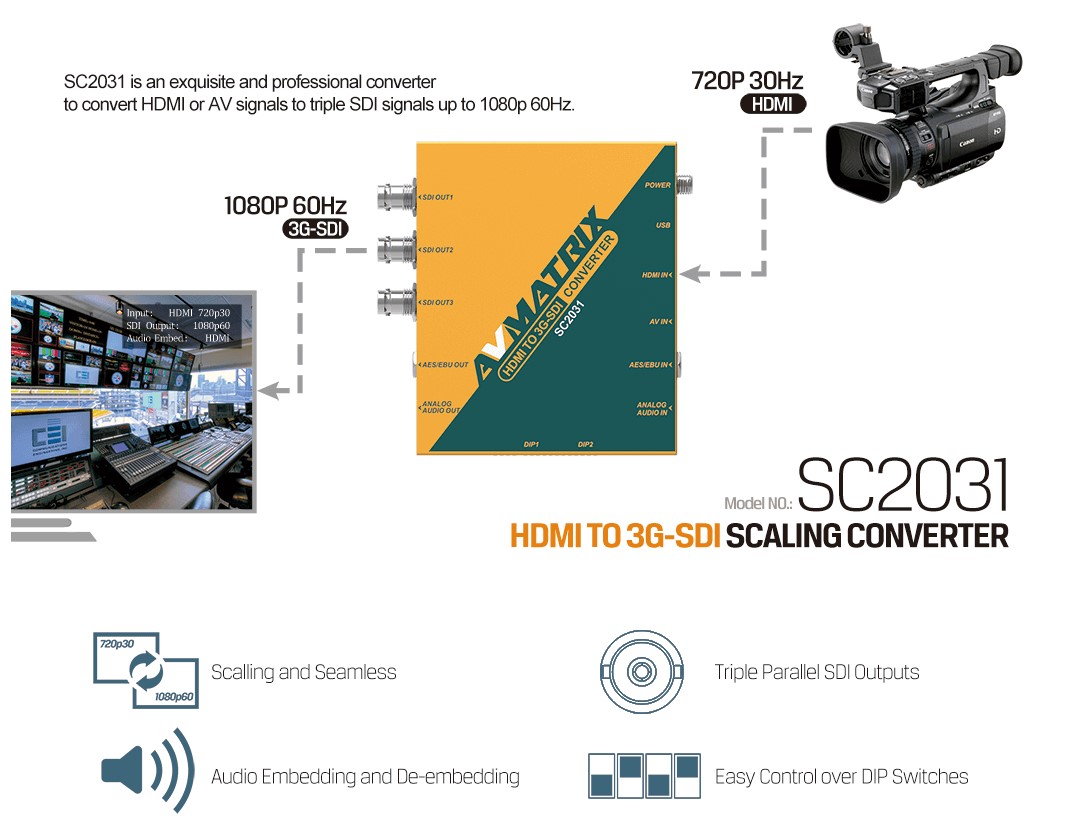

AVMATRIX SC2031 este un convertor HDMI profesional ce converteste semnalele HDMI sau AV in semnale SDI triple de pâna la 1080P60Hz. Formatul de iesire poate realiza trecerea sau scalarea sus/jos, conversia ratei cadrelor si functia de de-interlacing. Dispune, de asemenea, de incorporare si dezintegrare audio AES / EBU sau analogic. Toate functiile pot fi setate cu usurinta de catre un comutator DIP incorporat sau un computer prin USB. SC2031 este alegerea dvs. ideala pentru aplicatii de difuzare si post-productie AV. Mai multe informatii pe site-ul producatorului AVMATRIX.NET. Recenzii internationale pe BHPHOTOVIDEO.COM.
Caracteristici princiupale:
HDMI, AV, AES/EBU, and analog audio inputs
Three 3G-SDI, one AES/EBU, and one analog audio output
Up/down scaling and frame rate conversion
AES/EBU or analog audio embedding and de-embedding
Input signal automatic detection and configuration
LED indicators for power and signal lock
Easy control via DIP switches
Remotely control from PC via USB
Software can be upgraded via PC
Threaded locking power connector

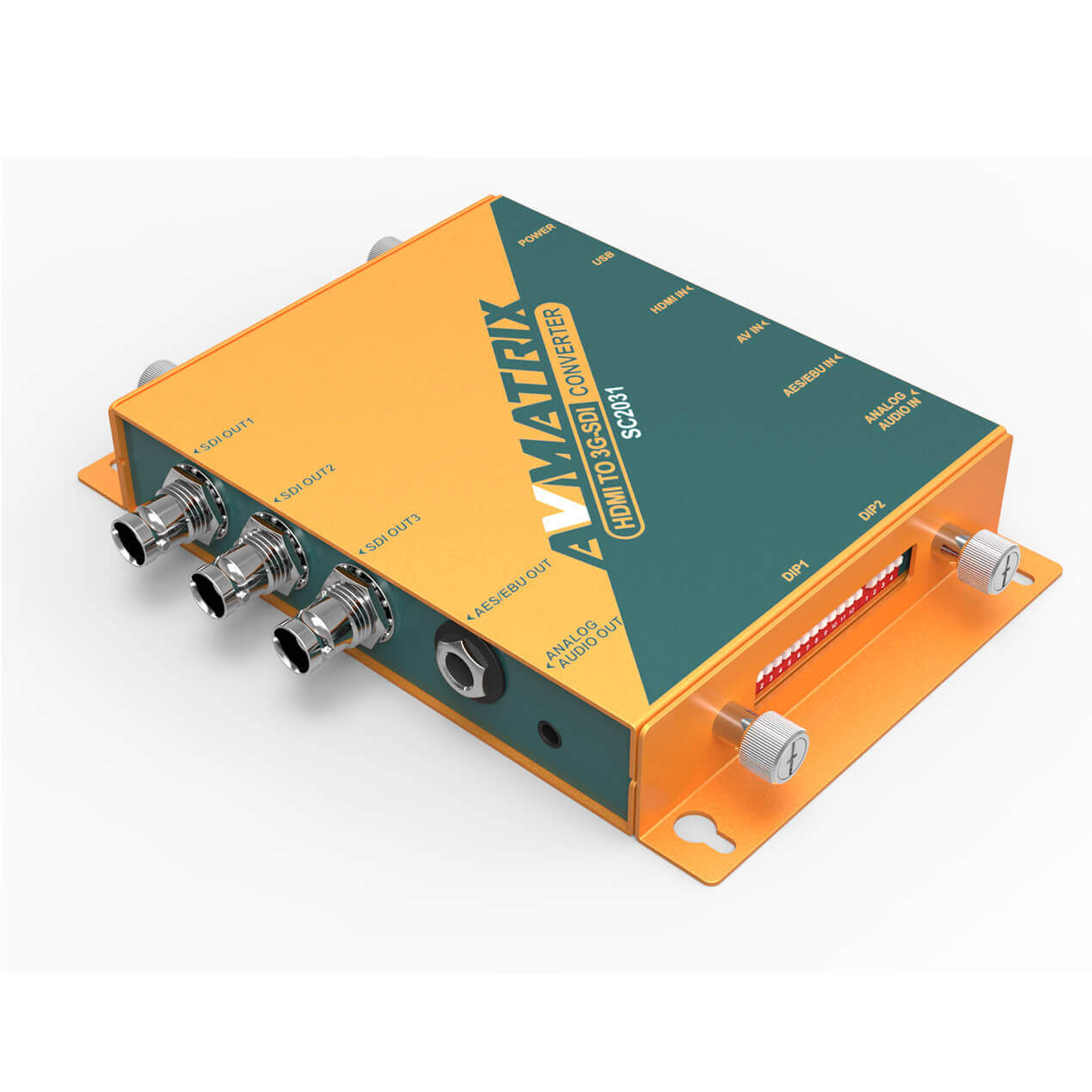

Detachable bracket design for wall mounting
cod: SC2031
- 1 x HDMI type-A
- 1 x 1/8" (3.5 mm) jack
- 1 x 1/4" (6.35 mm) TRS jack
- 1 x 1/8" (3.5 mm) jack
- 1 x SD/HD/3G-SDI, 1 x Alt 3G-SDI
- 1 x 1/4" (6.35 mm) TRS jack
- 1 x 1/8" (3.5 mm) jack
- 1080p 60/59.94/50/30/29.97/25/24/23.98/23.973 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25/24/23.98 576p 50, 576i 50 480p 59.94, 480i 60/59.94
- YUV 4:2:2, YUV 4:4:4, RGB 4:4:4
- NTSC, PAL
- 1080p 60/50/30/25/24 1080i 60/50 720p 60/50/30/25/24 625i 50, 525i 60
- SD/HD/3G-SDI
- SMPTE 292M/SMPTE 259M/SMPTE 424M
- YUV 4:2:2
- 12 DC
- 5 W
- -20 to 60°C
- 0 to 90% non-condensing
- 125.5 x 104 x 24.5 mm
1 x AVMATRIX SC2031; 1 x Power Adapter; 1 x Micro-USB Cable
Garantie 24 luni
