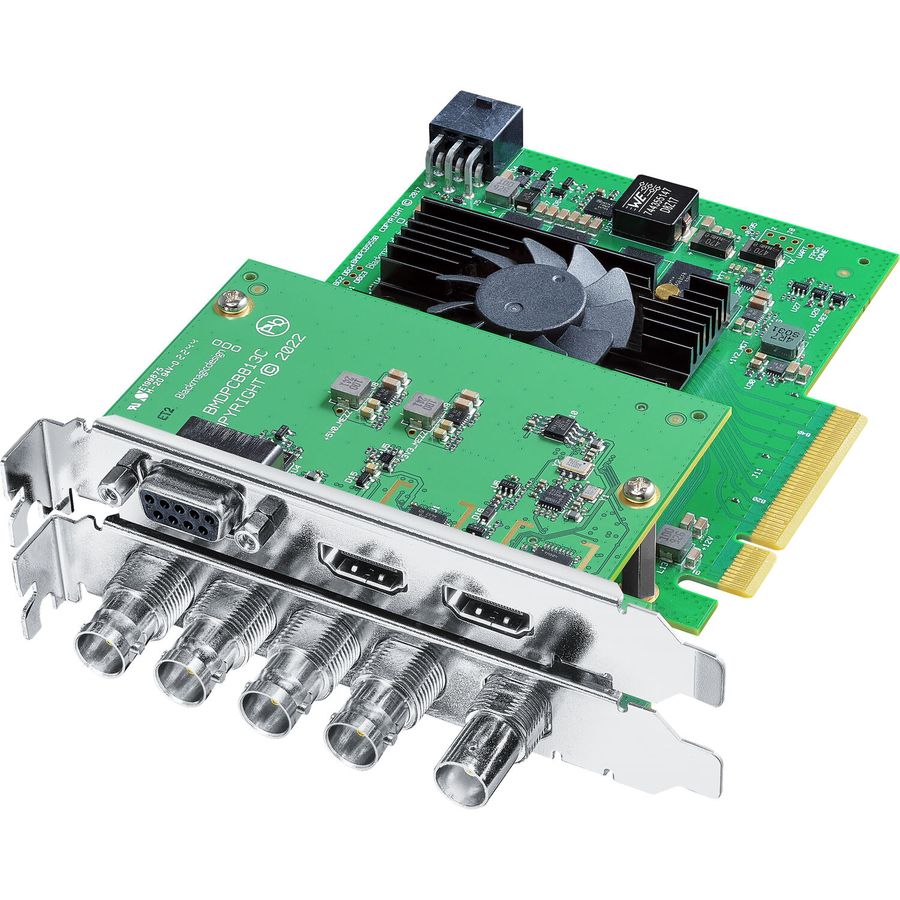

Blackmagic Design DeckLink 8K Pro G2 Capture Card
BDLKHCPRO8K12GG2Brand: BLACKMAGIC DESIGN
Pret Lei (pret fara TVA) : 3,595 Lei
Nu exista manuale disponibile pentru acest produs.
DeckLink 8K Pro G2 este cea mai avansata placa de captura si redare pentru cinema digital 8K. Dispunand de conexiuni Quad Link 12G-SDI si HDMI 2.1, DeckLink 8K Pro G2 poate lucra in toate formatele SD, HD, Ultra HD, 4K DCI, 8K si 8K DCI. Aveti suport pentru frame rate ridicat, video RGB pe 12 biti 4:4:4 si culoare Rec. 2020 completa, ceea ce il face perfect pentru fluxurile de lucru de noua generatie cu rezolutie ridicata, frame rate ridicat si gama dinamica ridicata!
DeckLink 8K Pro G2 include patru conexiuni bidirectionale 12G-SDI plus HDMI 2.1 pentru a suporta toate standardele SD, HD, Ultra HD, 4K si 8K, facand-o cea mai buna placa PCIe de captura si redare 8K profesionala pentru productia de filme de lung metraj. De asemenea, puteti utiliza gratuit DeckLink SDK pentru a configura pana la 4 fluxuri video in orice directie, format sau rata de cadre de pana la 4K DCI 60p, pentru captura si redare multi canal reala. DeckLink 8K Pro G2 suporta YUV 4:2:2 pe 8 si 10 biti, precum si RGB 4:4:4 pe 10 si 12 biti cu culori Rec. 2020 complete. In plus, puteti lucra la pana la 120 de cadre pe secunda in HD si 4K, si pana la 60 de cadre pe secunda in 8K. Cele patru conexiuni 12G-SDI suporta pana la 64 de canale audio incorporate. DeckLink 8K Pro G2 este perfect pentru urmatoarea generatie de fluxuri de lucru de inalta rezolutie, rata mare de cadre si gama dinamica ridicata!
Detalii pe site-ul producatorului, blackmagicdesign.com. Reviews utiliatori din lumea intrega pe bhphotovideo.com.

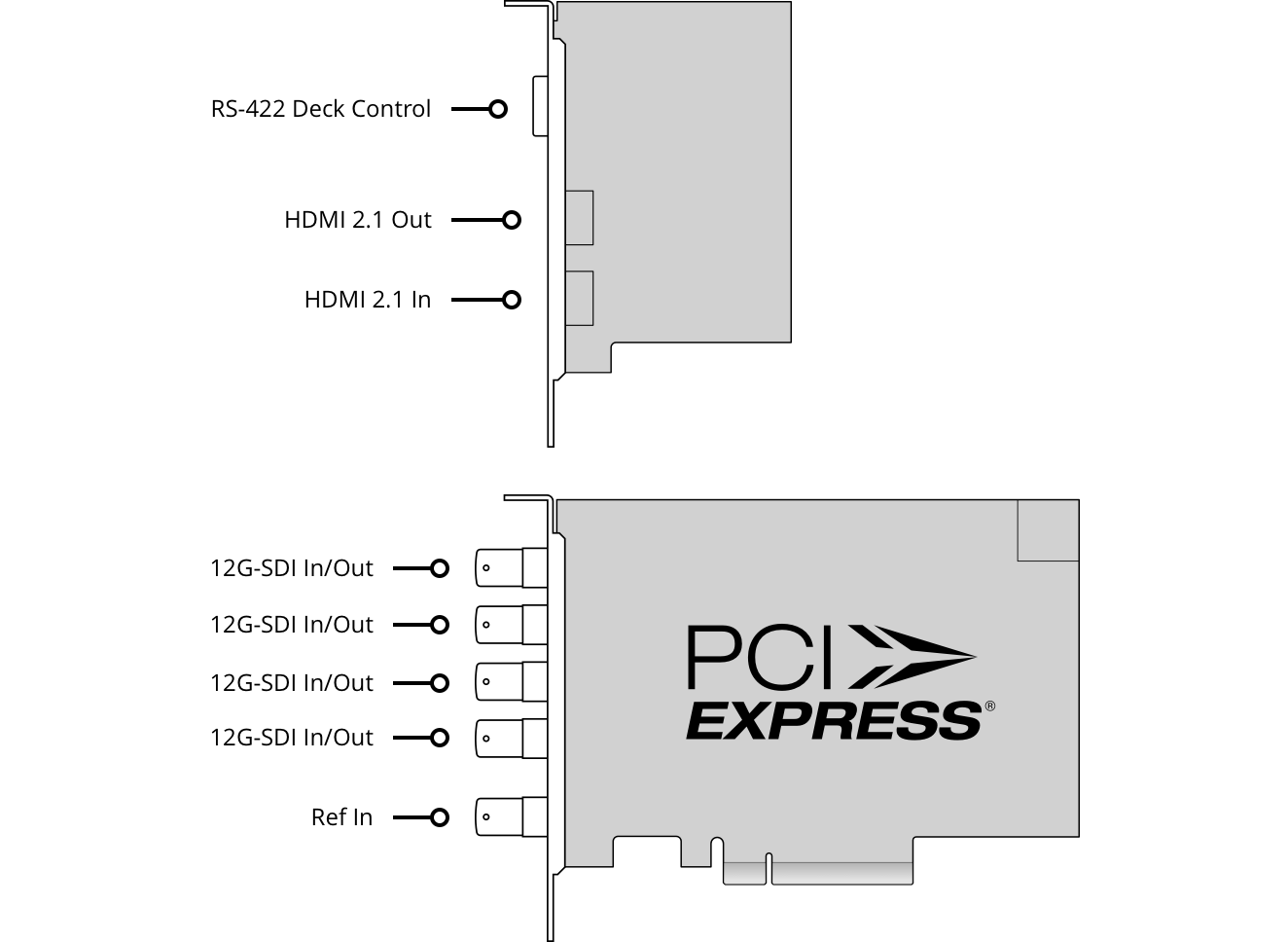

Conexiuni
Intrari video SDI
4 x 12G-SDI bidirectional
Suporta SD/HD/2K/4K/8K, single, dual link si quad link 4:2:2/4:4:4. Comutabil 2D/3D.
Iesiri video SDI
4 x 12G-SDI bidirectional
Suporta SD/HD/2K/4K/8K, single, dual link si quad link 4:2:2/4:4:4. Comutabil 2D/3D.
Intrari audio SDI
16 canale incorporate in SD/HD/2K.
64 de canale incorporate in 4K/8K.
Iesiri audio SDI
16 canale incorporate in SD/HD/2K.
64 de canale incorporate in 4K/8K.
Intrari video HDMI
1 x HDMI 2.1
Iesiri video HDMI
1 x HDMI 2.1
Intrari audio HDMI
8 canale incorporate in TMDS.
32 de canale incorporate in FRL.
Iesiri audio HDMI
8 canale incorporate in TMDS.
32 de canale incorporate in FRL.
Intrare sincronizare
Tri-Sync sau Black Burst.
Telecomanda
1 x iesire RS-422
Interfata computer
PCI Express 8 benzi generatia 3, compatibila cu sloturi PCI Express cu 8 si 16 benzi.
Codecuri acceptate
AVC-Intra, AVCHD, Canon XF MPEG2, SLR digital, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR si DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Necomprimat 8 biti 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
Software
Software inclus
DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility si Blackmagic driver pe Mac OS si Windows. Media Express, Blackmagic Desktop Video Utility si driver Blackmagic pe Linux.
Actualizare software interna
Firmware incorporat in driverul software. Incarcat la pornirea sistemului sau prin intermediul software-ului de actualizare.
Instalare fizica
PCI Express 8 lane generatia 3, compatibil cu sloturi PCI Express cu 8, 16 lane pe Mac OS, Windows si Linux. Necesita 2 sloturi PCI plus conexiune la sursa de alimentare a computerului. Va rugam sa consultati paginile de asistenta pentru a vedea cerintele de sistem complete.
Aplicatii software
DaVinci Resolve
Fusion
Final Cut Pro
Adobe Premiere Pro
Avid Media Composer
Adobe After Effects
Avid Pro Tools
Steinberg Cubase
Autodesk Flame
Adobe Photoshop
Alte aplicatii acceptate includ: Steinberg Nuendo, Open Broadcaster Software Studio, vMix, The Foundry Nuke, Grass Valley Edius X, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Resolume Arena, Vegas Creative Software Vegas Pro & Vegas Edit, Corel VideoStudio Pro, CyberLink PowerDirector, VidblasterX Studio & Broadcast, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Nautilus Studio NEMO3D, Derivative TouchDesigner, Assimilate Scratch & Live Assist, Burst Video WebClip2Go & [REC]Marker, NewBlue Title Live & Titler Pro, SGO Mistika, Zoom.
Acestea sunt aplicatii terta parte si suportul poate varia, consultati furnizorul de software.
Standarde video SDI
Standarde video SD
525i59.94 NTSC, 625i50 PAL
Standarde video HD
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95.90, 1080p96, 1080p100, 1080p119.88, 1080p120
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Standarde video 2K
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2Kp95.90 DCI, 2Kp96 DCI, 2Kp100 DCI, 2Kp119.88 DCI, 2Kp120 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Standarde video Ultra HD
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 2160p95.90, 2160p96, 2160p100, 2160p119.88, 2160p120
Standarde video 4K
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95.90 DCI, 4Kp96 DCI, 4Kp100 DCI, 4Kp119.88 DCI, 4Kp120 DCI
Standarde video 8K
4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60
Standarde video 8K DCI
8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI, 8Kp59.94 DCI, 8Kp60 DCI
Standarde video 3D SDI
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95.90, 1080p96, 1080p100, 1080p119.88, 1080p120
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI , 2Kp59.94 DCI, 2Kp60 DCI, 2Kp95.90 DCI, 2Kp96 DCI, 2Kp100 DCI, 2Kp119.88 DCI, 2Kp120 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95.90 DCI, 4Kp96 DCI, 4Kp100 DCI, 4Kp119.88 DCI, 4Kp120 DCI
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 2160p95.90, 2160p96, 2160p100, 2160p119.88, 2160p120
Conformitate SDI
SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M nivel A si B, SMPTE 2036-1, SMPTE 2048-1, SMPTE 2081-10, SMPTE 2081-11, SMPTE 2081-12, SMPTE 2082-10, SMPTE 2082-11, SMPTE 2082-12 si SMPTE ST2108-1
Suport pentru metadate SDI
RP 188/SMPTE 12M-2 si closed captioning.
Esantionare audio
Frecventa de esantionare standard de televiziune de 48 kHz la 24 de biti.
Esantionare video SDI
4:2:2, 4:4:4
Precizia culorii SDI
8, 10, 12 biti RGB 4:4:4 in toate modurile pana la 8Kp30 DCI, si 8, 10 biti YUV 4:2:2 in toate modurile.
Spatiu de culoare
REC 601, REC 709, REC 2020.
Suport HDR
Ambalare metadate statice HDR, caracteristici de transfer HLG si PQ.
Suport pentru rate multiple
Conexiunile video SDI sunt comutabile intre SD/HD/2K/4K si 8K.
Standarde video HDMI 2.1
Standarde video SD
525i59.94 NTSC, 625i50 PAL
Standarde video HD
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95, 1080p96, 1080p100, 1080p119, 1080p120
1080i50, 1080i59.94, 1080i60
Standarde video Ultra HD
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48 2160p50, 2160p59.94, 2160p60, 2160p95, 2160p96, 2160p100*, 2160p119*, 2160p120*
Standarde video 4K
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95 DCI, 4Kp96 DCI, 4Kp100 DCI*, 4Kp119 DCI*, 4Kp120 DCI*
Standarde video 8K
4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50*, 4320p59.94*, 4320p60*
Standarde video 8K DCI
8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI*, 8Kp59.94 DCI*, 8Kp60 DCI*
* Numai necomprimat
Esantionare audio HDMI
Rata de esantionare standard de televiziune de 48 kHz si 24 de biti.
Esantionare video HDMI
4:2:2, 4:4:4 si 4:2:0*
Precizia culorilor HDMI
8, 10 si 12 biti*
*Esantionarea video si precizia culorilor acceptate depind de capacitatile dispozitivului HDMI conectat, de rezolutia video si de rata de cadre.
Spatiu de culoare HDMI
REC 601, REC 709, REC 2020.
Suport HDR
Dolby Vision (pana la Ultra HD si 4K DCI 60p), ambalare metadate statice HDR, caracteristici de transfer HLG si PQ.
Configuratie HDMI
HDMI 2.1 accepta Deep Color si HDR. Se configureaza automat la ecranul conectat.
Suport pentru rate multiple
Conexiunile video HDMI sunt comutabile intre SD/HD/UHD si 4K.
Protectie impotriva copierii
Intrarea HDMI nu poate captura din surse HDMI protejate impotriva copierii. Confirmati intotdeauna detinerea drepturilor de autor inainte de capturarea sau distribuirea continutului.
Procesare
Conversia spatiului de culoare
Hardware bazat pe timp real la iesire.
Procesare 3D
Captare si redare cu flux dublu ochi stang/ ochi drept (numai SDI).
Efecte in timp real
Efecte interne DaVinci Resolve, Final Cut Pro. Efecte Adobe Premiere Pro CC Mercury Playback Engine. Efecte interne Avid Media Composer.
Specificatii fizice

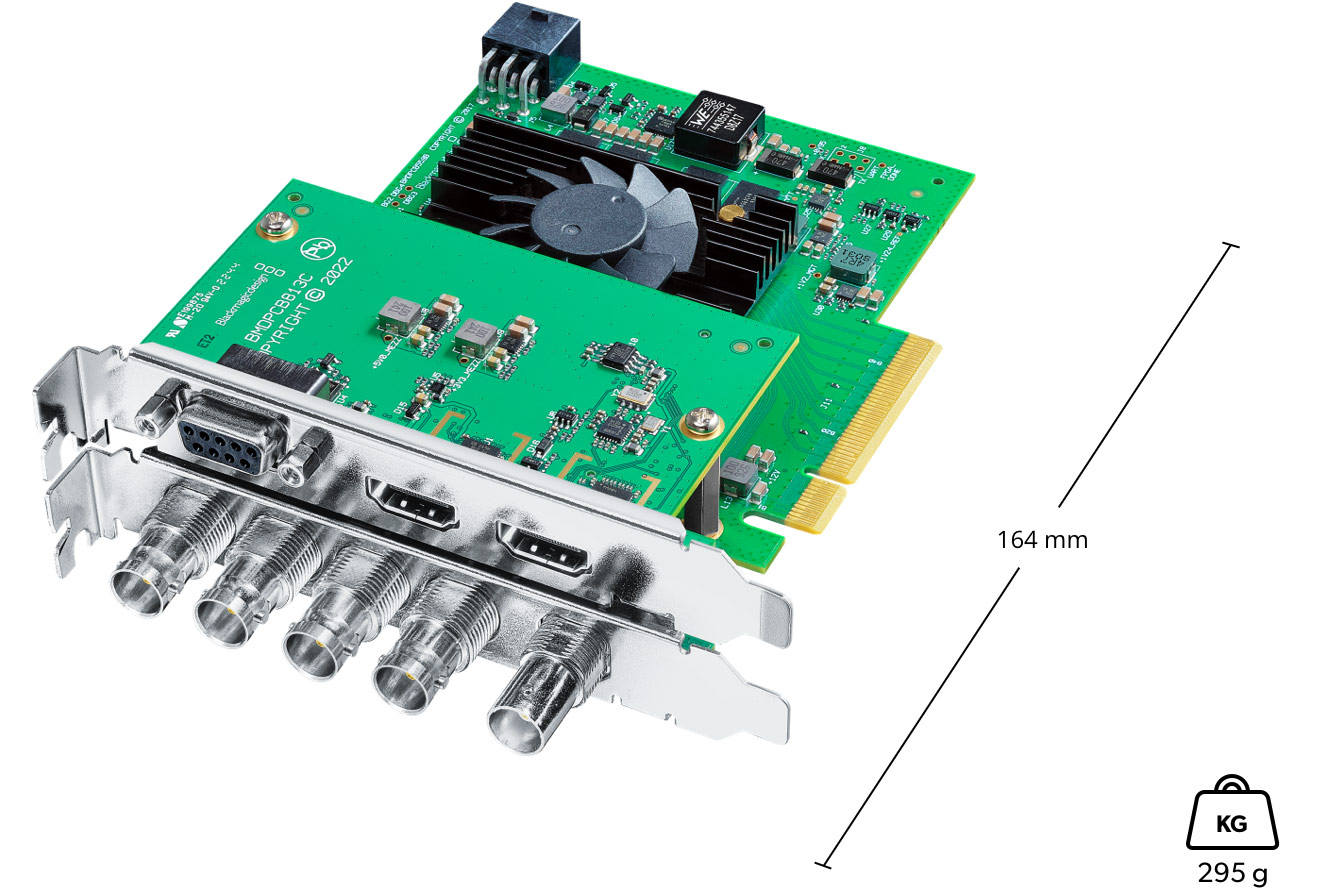

Lungime
164 mm
Greutate
295 g
Sisteme de operare
Mac 14.0 Sonoma, Mac 15.0 Sequoia sau ulterior.
Windows 10, pe 64 de biti.
Windows 11.
Linux
Cerinte de alimentare
Consum de energie
30 W
Specificatii de mediu
Temperatura de functionare
5° la 50° C
Temperatura de depozitare
-20° la 60° C
Umiditate relativa
0% pana la 90% fara condensare
DeckLink 8K Pro G2; Placa mezanin HDMI 2.1; Cablu de alimentare externa; Distantiere si suruburi; Portofel de bun venit cu cod QR pentru descarcarea software-ului; Garantie 2 ani
