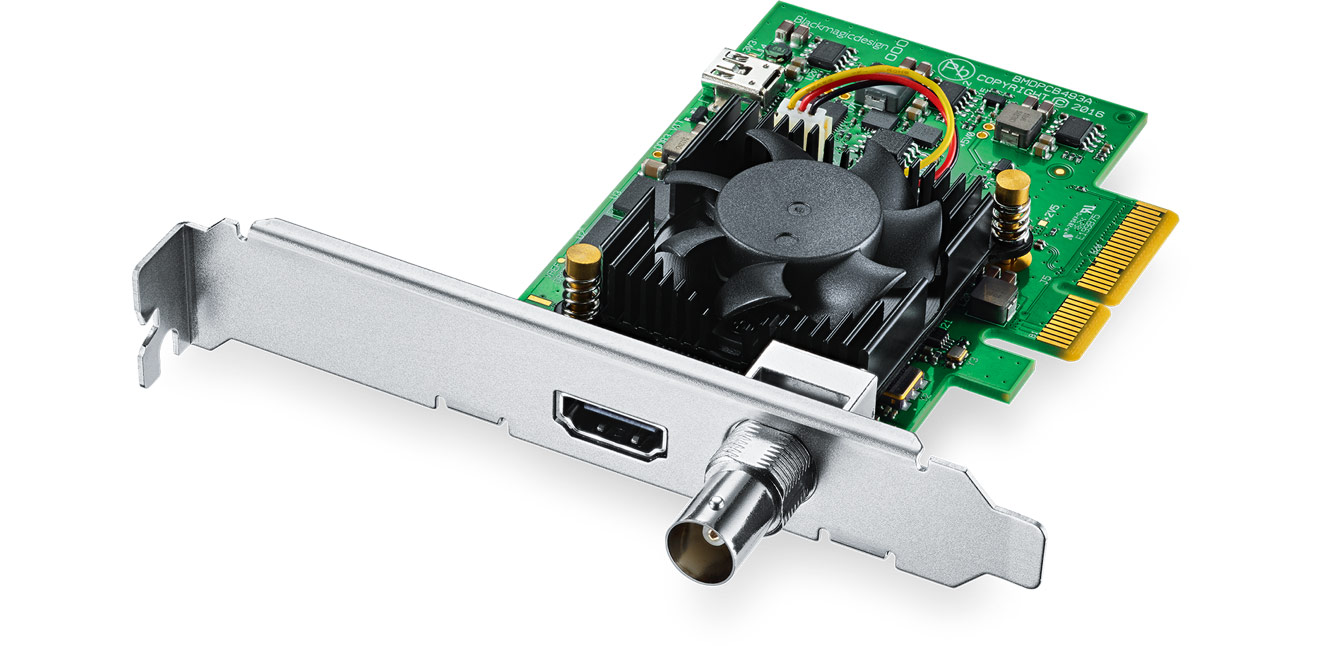

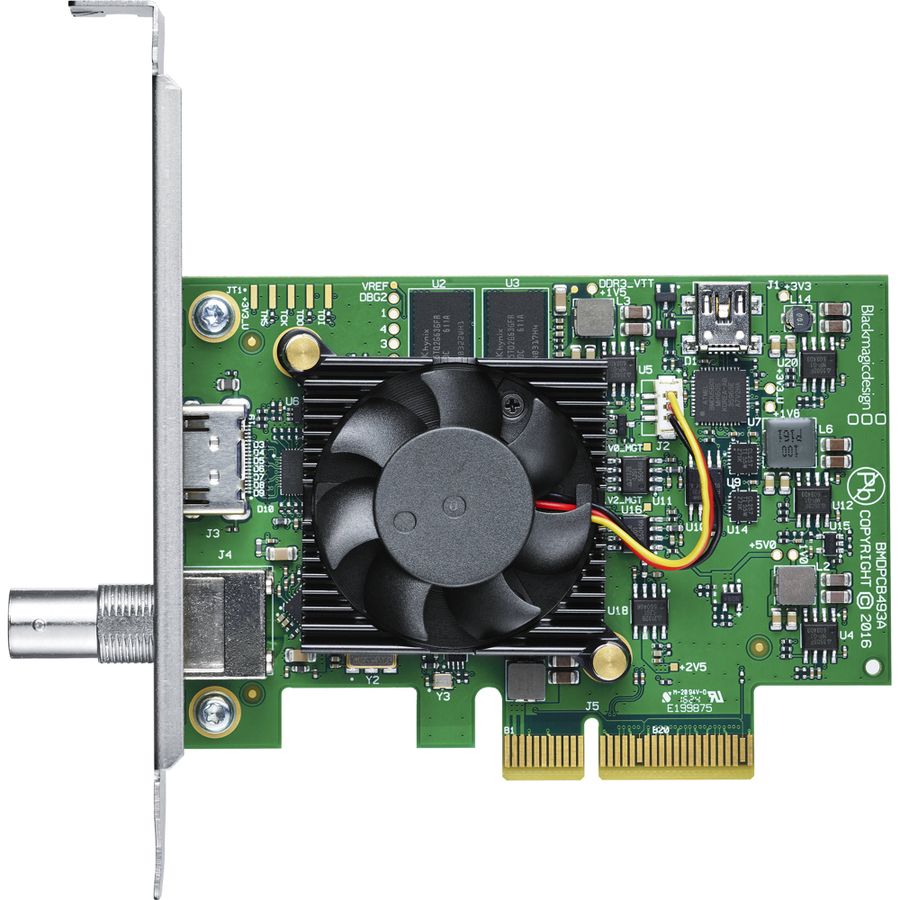

Blackmagic Design DeckLink Mini Recorder 4K (BM-BDLKMINIREC4K)
BDLKMINIREC4KBrand: BLACKMAGIC DESIGN
Pret Lei (pret fara TVA) : 906 Lei
Nu exista manuale disponibile pentru acest produs.
Blackmagic Design DeckLink Mini Recorder 4K (BM-BDLKMINIREC4K)
Blackmagic Design DeckLink Mini Recorder 4K este un card PCle slot capture cu intrari atat SD/HD/3G/6G-SDI cat si HDMI pentru inregistrarea video necomprimat 10-bit de la o camera direct in computerul dumneavoastra. Veti putea realiza ingestul in timp ce camera inregistreaza live sau de la un playback al inregistrarilor camerei. Intrarile sunt active, asa ca odata ce introduceti un cablu in ele, vor incepe sa functioneze. Acest card schimba automat intre SD is HD, deci va va fi posibil sa folositi toate formatele video comune. Punctul de ingerare printr-un card de capturare este bypass-ul compresiilor inutile si pierderea de date. Cardul face o singura compresie, cand este introdus in calculator, unde inregistrarea se condeaza intr-un codec gata de editat la alegerea dumneavoastra. Mai multe detalii pe site-ul producatorului, blackmagicdesign.com. Reviews utilizatori pe linkul urmator bhphotovideo.com
cod: BDLKMINIREC4K
General
- 1 x 10-bit SD/HD/Ultra HD comutabil
- 16 canale incorporate in SD, HD si Ultra HD comutabile
- 1 x conector HDMI 2.0a
- 8 canale incorporate in SD, HD si Ultra HD
- PCI Express 4 lane generation 2, compatibil cu 4, 8 si 16 lane PCI Express slots
- AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2
- 525i59.94 NTSC, 625i50 PAL
- 720p50, 720p59.94, 720p60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60; 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30; 1080i50, 1080i59.94, 1080i60
- 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
- 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
- 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI F25PsF
- SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 si ITU-R BT.601
- RP 188/SMPTE 12M-2 si closed captioning
- Sample rate standard de televiziune de 48 kHz la 24 bit
- SDI: 4:4:4 & 4:2:2; HDMI: 4:4:4, 4:2:2 & 4:2:0
- SDI: 8, 10, 12-bit RGB 4:4:4 in toate modurile pana la 8K DCI 30p si 8, 10-bit YUV 4:2:2 in toate modurile pana la 1080p60 si 8, 10-bit YUV 4:2:2 in toate modurile. HDMI: Pana la 12-bit (Deep Color)
- REC 601, REC 709

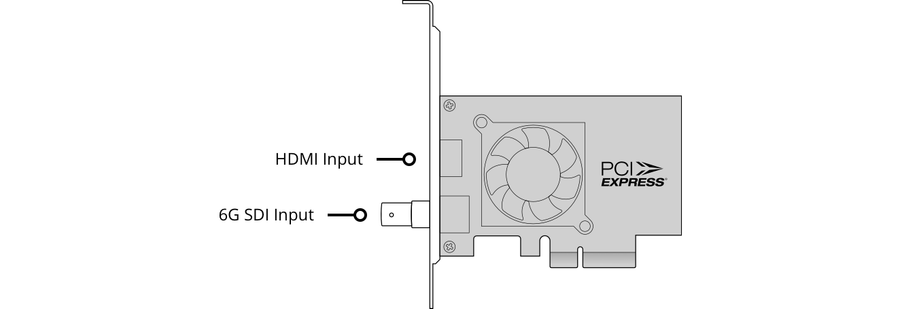

- Conexiunile video HDMI si SDI sunt comutabile intre SD/HD/2K si 4K
- HDMI 2.0a suporta Deep Color si HDR. Se configureaza automat la display-ul care este conectat
- Hardware based in timp real
- Down conversion bazat pe software in timpul redarii
- Software based up conversion de la SD la HD la captura. Selectabil intre 4:3 pillarbox sau 16:9 anamorphic
- Mac OS X 10.11 El Capitan, MacOS 10.12 Sierra, MacOS 10.13 High Sierra sau mai recent; Windows 7, 8.1 si 10, toate 64-bit; Linux
- 8 W
- De la 5° C pana la 40° C
- De la -20° C pana la 45° C
- De la 0 pana la 90%, fara condensare

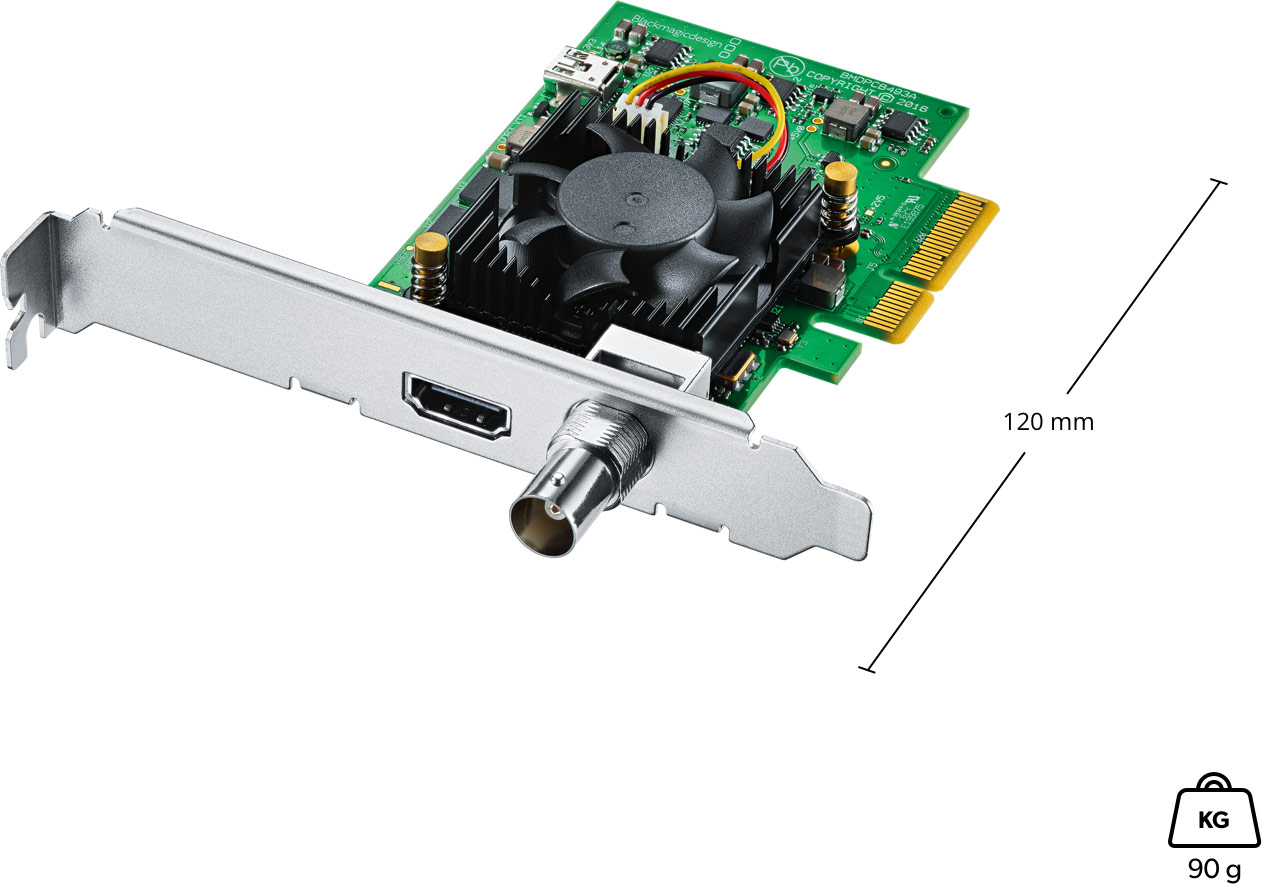

- Adancime: 120 mm
- 90 g
Blackmagic Design DeckLink Mini Recorder 4K; Software ; Garantie 3 ani
