Blackmagic Design UltraStudio 4K Mini Capture & Playback Unit
BDLKULSDMINI4KBrand: BLACKMAGIC DESIGN
Stoc epuizat
UltraStudio 4K Mini este o solutie portabila de captare si redare Thunderbolt 3 la pachet cu cea mai recenta tehnologie de broadcast! Obtineti o captura de calitate broadcast de 8 si 10 biti high dynamic range in toate formatele de pana la 4K DCI la
Euro (pret fara TVA) : 932 €
Pret Lei (pret fara TVA) : 4,848 Lei
Pret Lei (pret fara TVA) : 4,848 Lei
Pret (TVA inclus) : 5866 Lei
Nu exista manuale disponibile pentru acest produs.
Blackmagic Design UltraStudio 4K Mini Capture & Playback Unit
UltraStudio 4K Mini este o solutie portabila de captare si redare Thunderbolt 3 la pachet cu cea mai recenta tehnologie de broadcast! Obtineti o captura de calitate broadcast de 8 si 10 biti high dynamic range in toate formatele de pana la 4K DCI la 60p si captura 12 biti high dynamic range in toate formatele pana la 4K DCI la 30p. In plus, cititorul de card SD integrat va permite sa montati sursa de media a camerei direct pe computer, astfel incat sa puteti incepe sa editati imediat! Detalii pe site-ul producatorului, blackmagicdesign.com. Reviews utilizatori din lumea intreaga pe bhphotovideo.com.
cod: BDLKULSDMINI4KGeneral
- 1
- 2 x program out, 1 x loop out
- 270Mb, 1.5G, 3G, 6G, 12G
- 1 x Component YUV pe 3 BNC-uri, 1 x Compozit NTSC/PAL pe 1 BNC
- 1 x Component YUV pe 3 BNC-uri, 1 x Compozit NTSC/PAL pe 1 BNC
- 1 x conector HDMI 2.0b
- 1 x conector HDMI 2.0b
- 2 canale audio profesionale echilibrate prin conectori jack de 1/4 inch
- 2 canale audio profesionale echilibrate prin conectori jack de 1/4 inch
- 16 canale incorporate in SD, HD, 2K, UHD si 4K
- 16 canale incorporate in SD, HD, 2K, UHD si 4K
- 8 canale incorporate in SD, HD, UHD si 4K
- 8 canale incorporate in SD, HD, UHD si 4K
- 1 x intrare microfon de 48 V prin conector XLR
- Phantom Power comutabil controlat prin software
- Blackburst in format SD sau Tri-Sync in format HD
- 1 x USB-C 3.1 Gen 1 (pana la 5 Gb/s).
- 2 x Porturi de control RS-422 compatibile Sony
- Compatibil cu UHS-I si UHS-II
- Thunderbolt 3
- AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
- DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver pe Mac OS si Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver pe Linux.
- Firmware incorporat in driverul de software. Incarcat la pornirea sistemului sau prin software-ul de actualizare
- 525i59.94 NTSC, 625i50 PAL
- 720p50, 720p59.94, 720p60 /1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 / 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 / 1080i50, 1080i59.94, 1080i60
- 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI / 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
- 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
- 720p50, 720p59.94, 720p60 / 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 / 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 / 1080i50, 1080i59.94, 1080i60 / 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI / 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 / 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
- SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2036-1, SMPTE 2048-1, SMPTE 2081-10, SMPTE 2082-10 si SMPTE ST2108-1
- HD RP188
- Closed captioning
- Sample rate standard de televiziune de 48 kHz la 24 bit
- 4:2:2, si 4:4:4
- 8, 10, 12-bit RGB 4:4:4 in 2D modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 in all 2D modes.
- 8, 10, 12-bit RGB 4:4:4 in 3D modes up to 2Kp60 DCI and 8, 10-bit YUV 4:2:2 in all 3D modes.
- REC 601, REC 709 si REC 2020
- Encoder H.265 hardware based in timp real
- Hardware based in timp real
- Captura si redare dual stream si frame packed
- DaVinci Resolve, Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects
- Mac 10.13 High Sierra, Mac 10.14 Mojave sau mai recent
- Windows 7, 8.1 sau Windows 10, toate 64 bit
- Linux
- 1 x Internal 100 - 240V AC; 75.3W max
- De la 5° C pana la 40° C
- De la -20° C pana la 45° C
- De la 0 pana la 90%, fara condensare

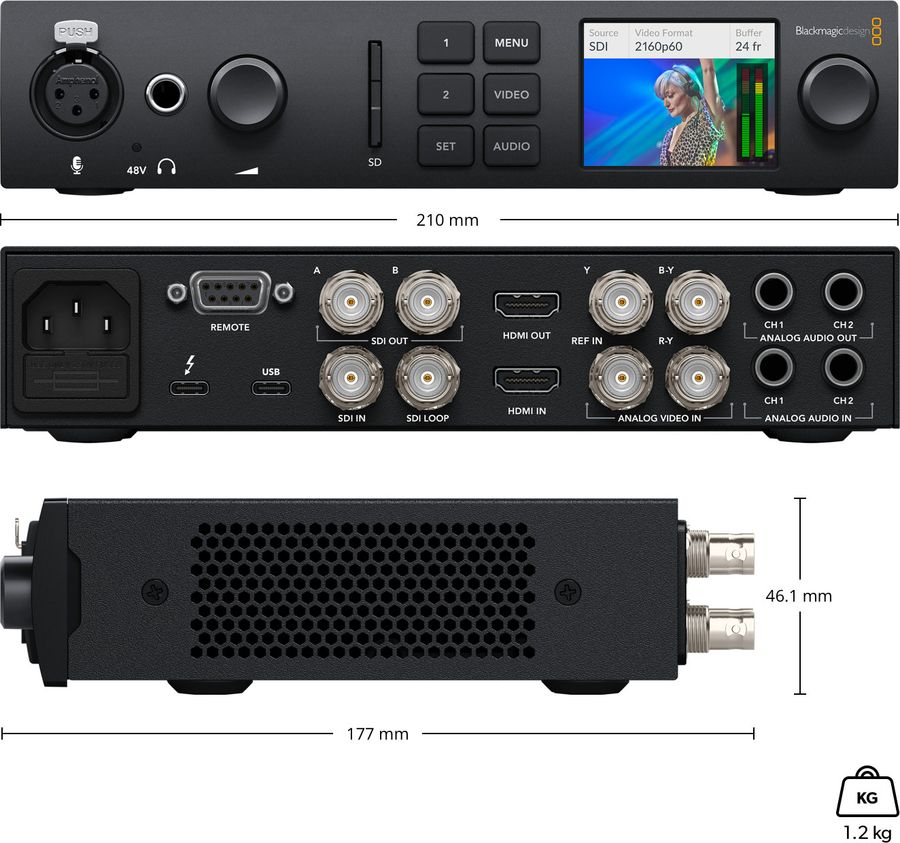

- 21 cm x 17 cm x 4.6 cm
- 1.2 kg
Standarde Video HDMI
- Sample rate standard de televiziune de 48 kHz la 24 bit
- 4:2:0, 4:2:2 si 4:4:4
- 8, 10 si 12-bit
- HDMI 2.0 suporta Deep Color si HDR si se configureaza automat la display-ul care este conectat
- Conexiunile video HDMI sunt comutabile intre SD/HD/UHD si 4K
- Intrarea HDMI nu poate capta din surse HDMI protejate pentru copiere
- Confirmati intotdeauna dreptul de proprietate asupra drepturilor de autor inainte de capturarea sau distribuirea continutului
- 720p50, 720p59.94, 720p60 / 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 / 1080i50, 1080i59.94, 1080i60 / 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 / 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
- 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
- 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- 720p50, 720p59.94, 720p60 / 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 / 1080i50, 1080i59.94, 1080i60
- 525i59.94 NTSC, 625i50 PAL
1 x UltraStudio 4K Mini; 1 x card SD card cu software si manual; Garantie 12 luni
