CVW Crystal Video Pro1000 (PRO 1000) Duplex wireless Video Transmission System TV station SDI-HDMI
Pro1000Brand: CVW - Crystal Video Wireless
Pret Lei (pret fara TVA) : 25,632 Lei
Nu exista manuale disponibile pentru acest produs.

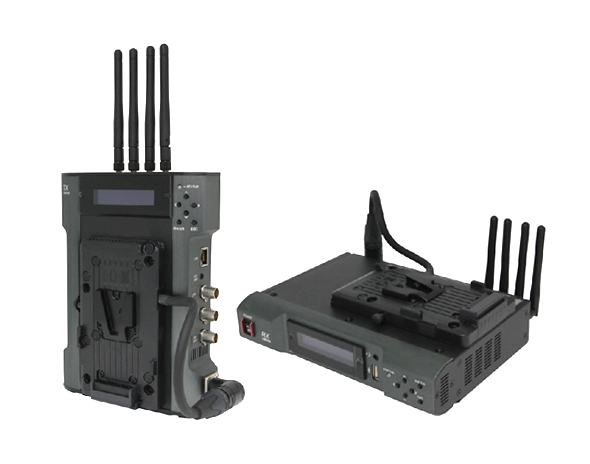

CVW Crystal Video Pro1000 (PRO 1000) Duplex wireless Video Transmission System TV station SDI-HDMI

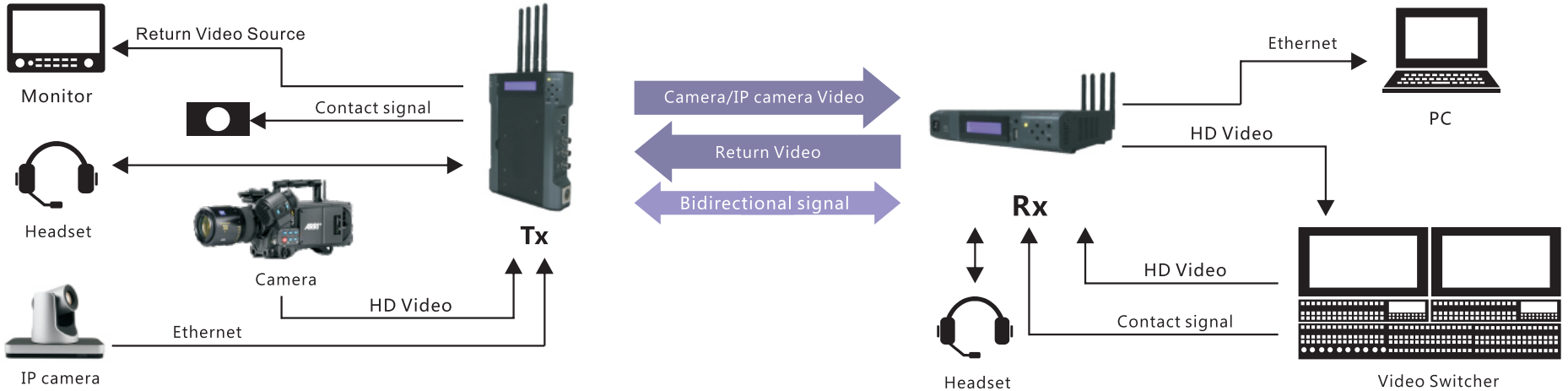

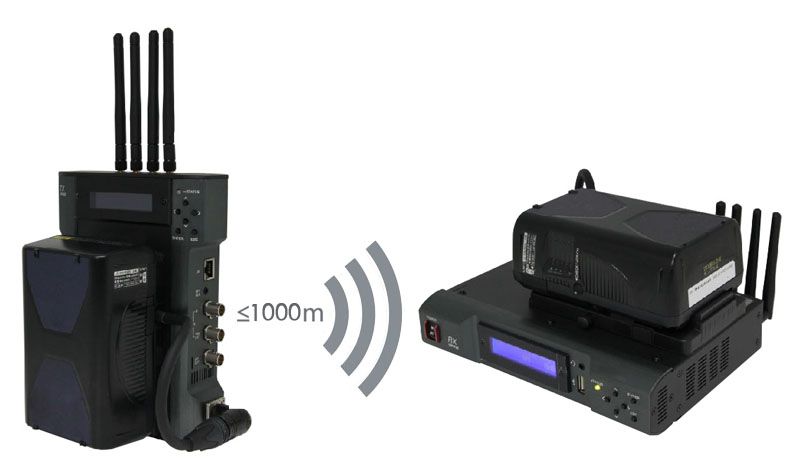

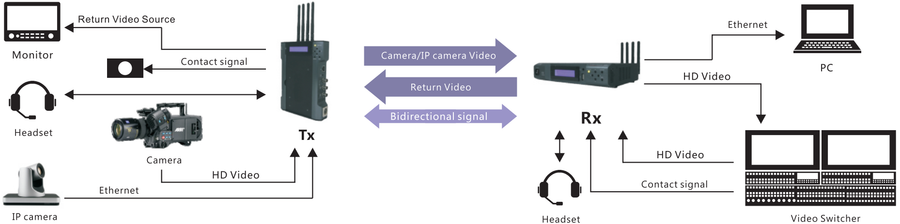

CVW Pro1000 Duplex wireless Video Transmission System professional TV station SDI-HDMI de la Crystal Video Technology este un sistem de transmisie fara fir, cu raza lunga de actiune (1000 de metri) folosit in mai multe unitati de productie si posturi de radio si televiziune. Latenta este ultra-scazuta, de 200ms (un clipit rapid are 400ms). Acest sistem suporta o varietate de semnale bidirectionale si date, cum ar fi video de retur, intercom, tally si RS-422 remote. Sistemul accepta HD-SDI, 3G-SDI si video Full HD pâna la o rezolutie de 1920x1080. Utilizeaza compresia H.264 High Profile si suporta rate de transmisie de pâna la 25 Mbps. Tehnologia Beamforming face o unda directionala intre transmitator si receptor, limitand interferentele de la alti utilizatori cu 5 GHz si asigurand o legatura puternica si stabila. Acest sistem are o functie DFS (Dynamic Frequency Selection = Selectia Dinamica a Frecventelor) incorporata. Aceasta detecteaza radarul meteo si evita conflictul cu undele radio oficiale. Cu functionalitatea DFS, se poate folosi liber in medii interioare si/sau in aer liber, fara a incalca legea locala. Wireless LAN bridge - sistemul are un echipament I/O Ethernet echipat. Acesta functioneaza ca o punte LAN wireless, ceea ce face posibila conectarea unei camere IP, a unui controler de la distanta etc. In plus, Ethernet-ul poate functiona simultan cu video SDI. Acest sistem rezolva problemele care apareau din cauza ca pana acum aceste transmisii puteau fi realizate numai prin cablu. Mai multe informatii pe site-ul producatorului, cv-hd.com.
cod: Pro1000Transmitator
- 1 x intrare HD-SDI
- 1150 g
- 201.5 mm x 154 mm x 44 mm
- 2 x iesiri HD-SDI
- 10-bit
- 5GHz band IEEE 802.11n
- 6 frames / 250 mS
- 1000 metri maximum
- HD: 1080i/60, 1080i/59.94, 1080i/50, 1080PsF/24, 1080PsF/23.98
- 3G: 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080PsF/29.97, 1080PsF/25, 1080p/24, 1080p/23.98, 1080PsF/30, 720p/59.94, 720p/50
- 200 mW
- 40 MHz
- 4 x Antene externe
- 4:4:4
- 108 mm x 10 mm x 10 mm
- 4 canale embedate SDI + Intercom 4-pole mini jack
- WPA2-PSK (AES)
- UNICAST (1 to 1)
- via XLR pe 4-pin
- 4 canale selectabile (Ch1, Ch2, DFS Auto Indoor, DFS Auto Outdoor)
- MINO/OFDM/Beam forming
- 15 W
- 7 V - 17 V
- De la 0° C pana la 50° C

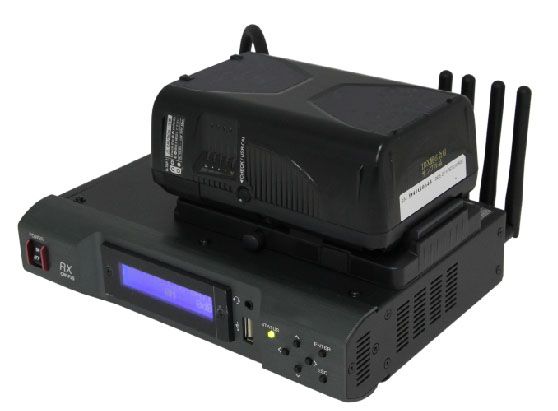

Receptor
- 4 canale embedate SDI + Intercom 4-pole mini jack
- 2 x iesiri HD-SDI
- 5GHz
- 200 mS
- 1000 metri maximum
- HD: 1080i/60, 1080i/59.94, 1080i/50, 1080PsF/24, 1080PsF/23.98
- 3G: 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080PsF/29.97, 1080PsF/25, 1080p/24, 1080p/23.98, 1080PsF/30, 720p/59.94, 720p/50
- 40 MHz
- 4 x Antene externe
- WPA2-PSK (AES)
- UNICAST (1 to 1)
- via XLR pe 4-pin
- 4 canale selectabile (Ch1, Ch2, DFS Auto Indoor, DFS Auto Outdoor)
- MINO/OFDM/Beam forming
- 15 W
- 7 V - 17 V
- De la 0° C pana la 50° C
- 108 mm x 10 mm x 10 mm
- 49 mm x 213 mm x 157 mm
- 1 x intrare HD-SDI
- 1100 g
1 x Transmitator Wireless HD; 1 x Receptor Wireless HD; 4 x antena transmisie; 4 x antena receptie; 2 x cablu D-Tap Power 2-Pin LEMO; 1 x sursa de alimentare LEMO cu 2 pini; 1 x cablu SDI; 2 x adaptor adaptor de patina la 1/4"-20; geanta de transport hard tip servieta; Garantie 1 an
