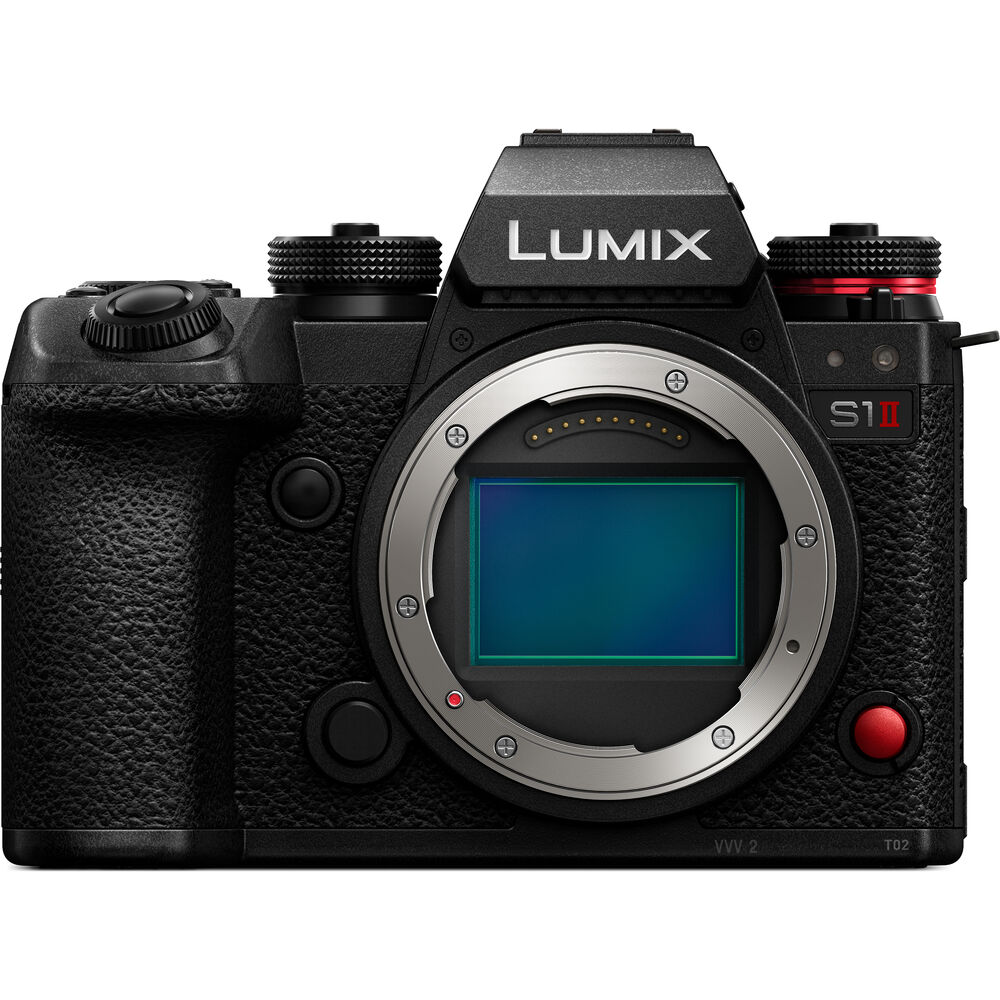

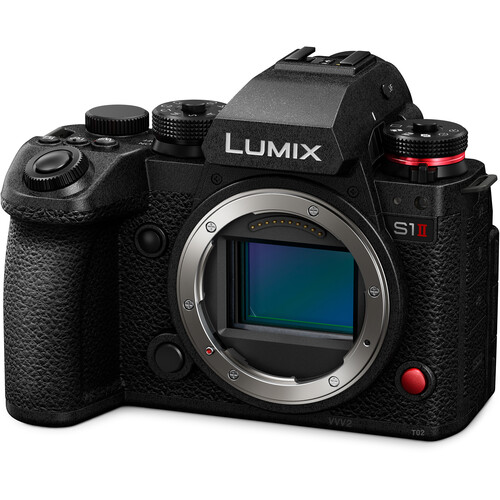

Panasonic Lumix S1 II (DC-S1M2E) Mirrorless Camera Body

TIP

• Tip
• Camera foto mirrorless
• Suport pentru obiectiv
• Sistem L-Mount

SENZOR DE IMAGINE

• Tip
• Senzor CMOS full-frame de 35 mm (35,8 mm x 23,8 mm)
• Numar de pixeli efectivi ai camerei foto/Numar total de pixeli
• 24,1 megapixeli / 26,8 megapixeli
• Strat de acoperire AR (antireflex)
• Da
• Raport de aspect/filtru culori
• 3:2/filtru de culori primare
• Sistem de reducere a prafului
• Tip comutare senzor de imagine
• Comportamentul obturatorului la oprirea alimentarii
• PORNIT/OPRIT

LATITUDINE

• „15 stopuri (V-Log) (Dynamic Range Boost activat)
  14+ stopuri (V-Log) (Dynamic Range Boost dezactivat)”

IMAGINE STATICA

• Format fisier inregistrare
• JPEG (DCF, Exif 3.0), RAW, HEIF
• Raport aspect
• 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
• Dimensiunea fisierului (Pixeli) / La utilizarea obiectivelor full-frame
• 3:2
• 6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 1920x1280(XS) / 12000x8000(XL)* / 8496x5664(LL)* *Modul High Resolution.
• 4:3
• 5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 1712x1280(XS) / 10656x8000(XL)* / 7552x5664(LL)* * *Modul High Resolution.
• 16:9
• 6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 1920x1080(XS) / 12000x6736(XL)* / 8496x4784(LL)* * *Modul High Resolution.
• 1:1
• 4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 1280x1280(XS) / 8000x8000(XL)* / 5664x5664(LL)* * *Modul High Resolution.
• 65:24
• 6 000 x 2 208 (L)
• 2:1
• 6 000 x 3 000 (L)
• Dimensiunea fisierului (Pixeli) / Cand se utilizeaza APS-C
• 3:2
• 3984x2656(L) / 2880x1920(M) / 2064x1376(S) / 1920x1280(XS)
• 4:3
• 3536x2656(L) / 2560x1920(M) / 1840x1376(S) / 1712x1280(XS)
• 16:9
• 3984x2240(L) / 2880x1624(M) / 2064x1160(S) / 1920x1080(XS)
• 1:1
• 2656x2656(L) / 1920x1920(M) / 1376x1376(S) / 1280x1280(XS)
• Calitate imagine
• Fine, Standard
• HDR (HLG)
• Da
• Spatiu culori
• sRGB, AdobeRGB

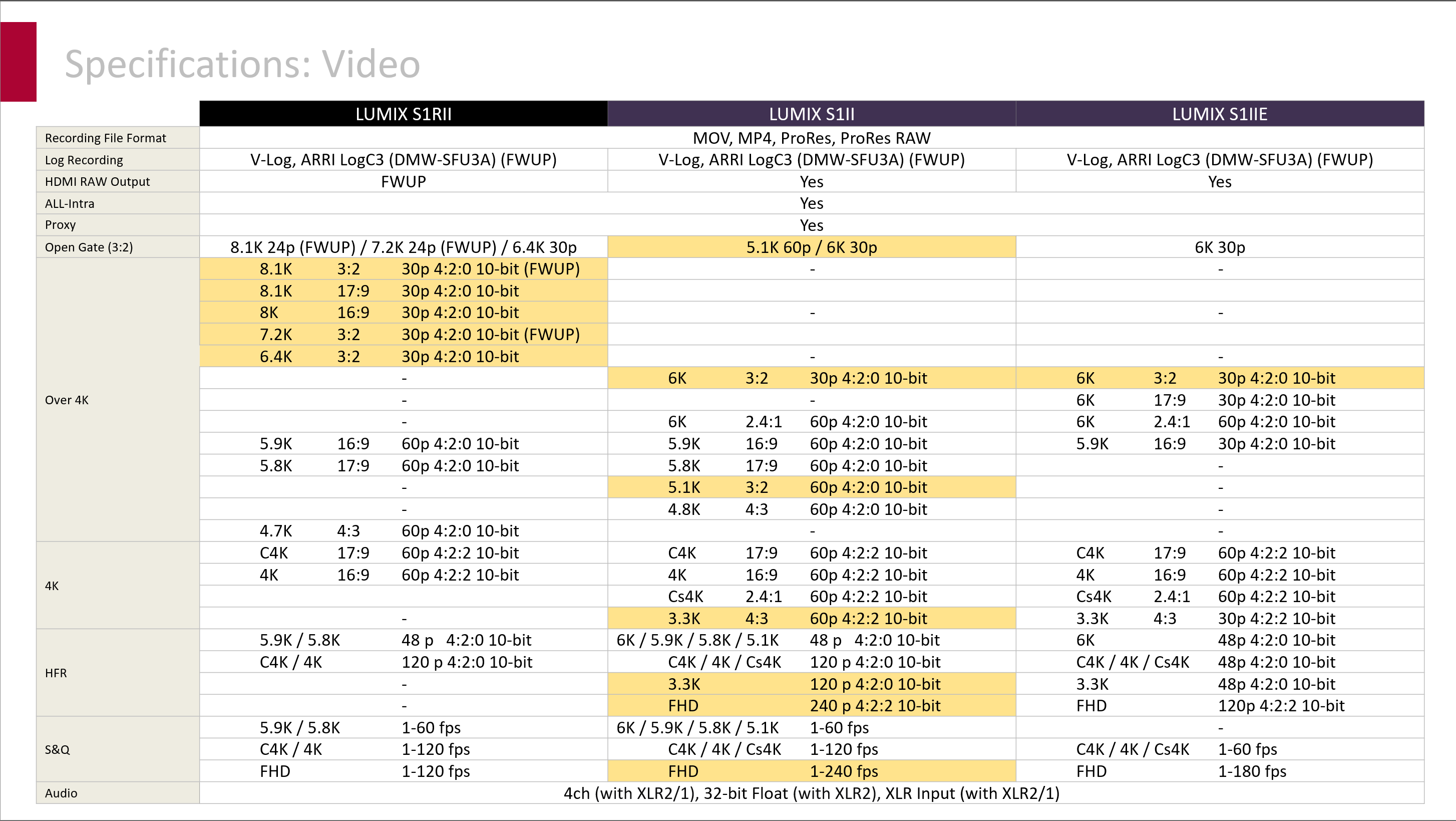

FILM

• Format fisier inregistrare
• MOV: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes, Apple ProRes RAW
  MP4: H.264/MPEG-4 AVC, H.265/HEVC
• Format audio
• 4ch Audio Recording: OFF
• MOV
  Format linear: LPCM (2ch stereo 48kHz/24-bit, 96kHz/24-bit*)
  Format flotant**: LPCM (2ch stereo 48kHz/32-bit, 96kHz/32-bit)
  *Cand se ataseaza un microfon Φ3,5 mm sau DMW-XLR2 (vandut separat). **Cand se ataseaza DMW-XLR2 (vandut separat).

  MP4
  Format linear: AAC (2ch stereo 48kHz/16-bit)
• 4ch Audio Recording: XLR*
• MOV
  Format linear: LPCM (4ch monaural 48kHz/24-bit)
  Format flotant: LPCM (4ch monaural 48kHz/32-bit)
  *Cand se ataseaza DMW-XLR2 (vandut separat)."
• 4ch Audio Recording: XLR*+Camera
• MOV
  Format linear: LPCM (4ch monaural 48kHz/24-bit, 96kHz/24-bit**)
  *Cand se ataseaza DMW-XLR2 (vandut separat). **Cand se ataseaza un microfon Φ3,5 mm sau DMW-XLR2 (vandut separat).
• Frecventa sistem
• 59,94 Hz/50 Hz/24 Hz
• Zona de imagine a videoclipului
• Full / APS-C / PIXEL/PIXEL
• Inregistrare log
• V-Log, ARRI LogC3* *Este necesara cheia de upgrade software (DMW-SFU3A).
• Proxy
• ON / OFF
  Proxy Rec Quality: H / M / L
  Real Time LUT (Proxy): ON / OFF
  *Cand sunt utilizate urmatoarele functii, inregistrarea proxy nu este disponibila: [MP4], [Rec Quality] care depaseste o rezolutie de C4K, [Rec Quality] cu un raport de aspect [4:3] sau [3:2], [Rec Quality] cu o rata mare a cadrelor video si [Streaming].
• MOV (*¹) (*²) (*³) / 59.94Hz / FULL
• [6K] 5952x3968 (3:2)
• [6K] 5952x2512 (2.4:1)
• [5.9K] 5888x3312 (16:9)
• [5.8K] 5760x3040 (17:9)
• [5.1K] 5088x3392 (3:2)
• [4.8K] 4800x3600 (4:3)
• [C4K] 4096x2160 (17:9)
• [Cs4K] 4096x1728 (2.4:1)
• [4K] 3840x2160 (16:9)
• [FHD] 1920x1080 (16:9)
• MOV (*¹) (*²) (*³) / 59.94Hz / PIXEL/PIXEL
• [4.8K] 4800x3600 (4:3)
• MOV (*¹) (*²) (*³) / 59.94Hz / APS-C / PIXEL/PIXEL
• [3.3K] 3328x2496 (4:3)
• [C4K] 4096x2160 (17:9)
• [Cs4K] 4096x1728 (2.4:1)
• [4K] 3840x2160 (16:9)
• [FHD] 1920x1080 (16:9)
• MOV (*¹) (*²) (*³) / 50.00Hz / FULL
• [6K] 5952x3968 (3:2)
• [6K] 5952x2512 (2.4:1)
• [5.9K] 5888x3312 (16:9)
• [5.8K] 5760x3040 (17:9)
• [5.1K] 5088x3392 (3:2)
• [4.8K] 4800x3600 (4:3)
• [C4K] 4096x2160 (17:9)
• [Cs4K] 4096x1728 (2.4:1)
• [4K] 3840x2160 (16:9)
• [FHD] 1920x1080 (16:9)
• MOV (*¹) (*²) (*³) / 50.00Hz / PIXEL/PIXEL
• [4.8K] 4800x3600 (4:3)
• MOV (*¹) (*²) (*³) / 50.00Hz / APS-C / PIXEL/PIXEL
• [3.3K] 3328x2496 (4:3)
• [C4K] 4096x2160 (17:9)
• [Cs4K] 4096x1728 (2.4:1)
• [4K] 3840x2160 (16:9)
• [FHD] 1920x1080 (16:9)
• MOV (*¹) (*²) (*³) / 24.00Hz / FULL
• [6K] 5952x3968 (3:2)
• [6K] 5952x2512 (2.4:1)
• [5.9K] 5888x3312 (16:9)
• [5.8K] 5760x3040 (17:9)
• [5.1K] 5088x3392 (3:2)
• [4.8K] 4800x3600 (4:3)
• [C4K] 4096x2160 (17:9)
• [Cs4K] 4096x1728 (2.4:1)
• [4K] 3840x2160 (16:9)
• [FHD] 1920x1080 (16:9)
• MOV (*¹) (*²) (*³) / 24.00Hz / APS-C / PIXEL/PIXEL
• [3.3K] 3328x2496 (4:3)
• [C4K] 4096x2160 (17:9)
• [Cs4K] 4096x1728 (2.4:1)
• [4K] 3840x2160 (16:9)
• [FHD] 1920x1080 (16:9)
• MP4 (*¹) (*²) / 59.94Hz / FULL
• [4K] 3840x2160 (16:9)
• [FHD] 1920x1080 (16:9)
• MP4 (*¹) (*²) / 59.94Hz / APS-C / PIXEL/PIXEL
• [4K] 3840x2160 (16:9)
• [FHD] 1920x1080 (16:9)
• MP4 (*¹) (*²) / 50.00Hz / FULL
• [4K] 3840x2160 (16:9)
• [FHD] 1920x1080 (16:9)
• MP4 (*¹) (*²) / 50.00Hz / APS-C / PIXEL/PIXEL
• [4K] 3840x2160 (16:9)
• [FHD] 1920x1080 (16:9)
• ProRes (*¹) (*²) (*³) / 59.94Hz / FULL
• [5.8K] 5760x3040 (17:9)
• [4.8K] 4800x3600 (4:3)
• [C4K] 4096x2160 (17:9)
• [Cs4K] 4096x1728 (2.4:1)
• [4K] 3840x2160 (16:9)
• [FHD] 1920x1080 (16:9)
• ProRes (*¹) (*²) (*³) / 59.94Hz / PIXEL/PIXEL
• [5.8K] 5760x3040 (17:9)
• [4.8K] 4800x3600 (4:3)
• [C4K] 4096x2160 (17:9)
• ProRes (*¹) (*²) (*³) / 59.94Hz / APS-C / PIXEL/PIXEL
• [3.3K] 3328x2496 (4:3)
• [C4K] 4096x2160 (17:9)
• [Cs4K] 4096x1728 (2.4:1)
• [4K] 3840x2160 (16:9)
• [FHD] 1920x1080 (16:9)
• ProRes (*¹) (*²) (*³) / 50.00Hz / FULL
• [5.8K] 5760x3040 (17:9)
• [4.8K] 4800x3600 (4:3)
• [C4K] 4096x2160 (17:9)
• [Cs4K] 4096x1728 (2.4:1)
• [4K] 3840x2160 (16:9)
• [FHD] 1920x1080 (16:9)
• ProRes (*¹) (*²) (*³) / 50.00Hz / PIXEL/PIXEL
• [5.8K] 5760x3040 (17:9)
• [4.8K] 4800x3600 (4:3)
• [C4K] 4096x2160 (17:9)
• ProRes (*¹) (*²) (*³) / 50.00Hz / APS-C / PIXEL/PIXEL
• [3.3K] 3328x2496 (4:3)
• [C4K] 4096x2160 (17:9)
• [Cs4K] 4096x1728 (2.4:1)
• [4K] 3840x2160 (16:9)
• [FHD] 1920x1080 (16:9)
• ProRes (*¹) (*²) (*³) / 24.00Hz / FULL
• [5.8K] 5760x3040 (17:9)
• [4.8K] 4800x3600 (4:3)
• [C4K] 4096x2160 (17:9)
• [Cs4K] 4096x1728 (2.4:1)
• [4K] 3840x2160 (16:9)
• [FHD] 1920x1080 (16:9)
• ProRes (*¹) (*²) (*³) / 24.00Hz / PIXEL/PIXEL
• [5.8K] 5760x3040 (17:9)
• [4.8K] 4800x3600 (4:3)
• [C4K] 4096x2160 (17:9)
• ProRes (*¹) (*²) (*³) / 24.00Hz / APS-C / PIXEL/PIXEL
• [3.3K] 3328x2496 (4:3)
• [C4K] 4096x2160 (17:9)
• [Cs4K] 4096x1728 (2.4:1)
• [4K] 3840x2160 (16:9)
• [FHD] 1920x1080 (16:9)

INREGISTRARE VIDEO LENTA SI RAPIDA

• MOV (*¹) (*²) / 59.94Hz / FULL
• [6K] 5952x2512 (2.4:1)
• [5.9K] 5888x3312 (16:9)
• [5.8K] 5760x3040 (17:9)
• [5.1K] 5088x3392 (3:2)
• [C4K] 4096x2160 (17:9)
• [Cs4K] 4096x1728 (2.4:1)
• [4K] 3840x2160 (16:9)
• [FHD] 1920x1080 (16:9)
• MOV (*¹) (*²) / 59.94Hz / APS-C
• [C4K] 4096x2160 (17:9)
• [Cs4K] 4096x1728 (2.4:1)
• [4K] 3840x2160 (16:9)
• [FHD] 1920x1080 (16:9)
• MOV (*¹) (*²) / 50.00Hz / FULL
• [6K] 5952x2512 (2.4:1)
• [5.9K] 5888x3312 (16:9)
• [5.8K] 5760x3040 (17:9)
• [5.1K] 5088x3392 (3:2)
• [C4K] 4096x2160 (17:9)
• [Cs4K] 4096x1728 (2.4:1)
• [4K] 3840x2160 (16:9)
• [FHD] 1920x1080 (16:9)
• MOV (*¹) (*²) / 50.00Hz / APS-C
• [C4K] 4096x2160 (17:9)
• [Cs4K] 4096x1728 (2.4:1)
• [4K] 3840x2160 (16:9)
• [FHD] 1920x1080 (16:9)
• MOV (*¹) (*²) / 24.00Hz / FULL
• [6K] 5952x2512 (2.4:1)
• [5.9K] 5888x3312 (16:9)
• [5.8K] 5760x3040 (17:9)
• [5.1K] 5088x3392 (3:2)
• [C4K] 4096x2160 (17:9)
• [Cs4K] 4096x1728 (2.4:1)
• [4K] 3840x2160 (16:9)
• [FHD] 1920x1080 (16:9)
• MOV (*¹) (*²) / 24.00Hz / APS-C
• [C4K] 4096x2160 (17:9)
• [Cs4K] 4096x1728 (2.4:1)
• [4K] 3840x2160 (16:9)
• [FHD] 1920x1080 (16:9)

iesire HDMI RAW

• Dispozitive externe compatibile
• „Blackmagic Video Assist 5„ 12G HDR, Blackmagic Video Assist 7” 12G HDR
  *DaVinci Resolve sau DaVinci Resolve Studio este necesar pentru redare, iar DaVinci Resolve Studio pentru editarea fisierelor Blackmagic RAW.
  *Consultati site-ul web Blackmagic Design pentru informatii despre versiunea corespunzatoare de firmware pentru Blackmagic Video Assist 5'' 12G HDR si Blackmagic Video Assist 7” 12G HDR.
  *Este posibil ca nu toate functiile sa fie disponibile, in functie de situatie.
  *Cand inregistrati in C4K 120p/100p, 4.8K 60p/50p sau 5.7K 60p/50p, se recomanda o rata de biti constanta de 5:1 sau mai mica pentru inregistrarea pe SSD si de 8:1 sau mai mica pentru inregistrarea pe card SD.

  Dispozitive ATOMOS „Ninja V” / „Ninja V+” / „Ninja” / „Ninja Ultra” / „Shogun” / „Shogun Ultra” / „Shogun Connect”
  *Este posibil ca nu toate functiile sa fie disponibile, in functie de situatie.
  *Verificati aici versiunile de firmware compatibile ale inregistratoarelor externe.
  https://panasonic.jp/support/global/cs/dsc/connect/index.html
  *„Ninja V”, „Ninja” si „Shogun” nu accepta anumite date video RAW.
  *Pentru a edita videoclipurile RAW inregistrate, este necesar un software compatibil cu Apple ProRes RAW.
  *O tabela LUT (Lookup table) conceputa exclusiv pentru videoclipuri RAW este disponibila pe urmatorul site web de asistenta pentru clienti, pentru a obtine aceeasi gradare de culoare ca V-Log/V-Gamut.
  https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/”
• 59.94Hz / FULL
• [6K] 6000x4000 (3:2)
• 29.97p (LPCM) (*⁴)
  23.98p (LPCM) (*⁴)
• [5.9K] 5888x3312 (16:9)
• 29.97p (LPCM) (*⁴)
  23.98p (LPCM) (*⁴)
• [5.7K] 5728x3024 (17:9)
• 59.94p (LPCM) (*⁴)
  29.97p (LPCM) (*⁴)
  23.98p (LPCM) (*⁴)
• 59.94Hz / PIXEL/PIXEL
• [4.8K] 4800x3600 (4:3)
• 59.94p (LPCM) (*⁴)
  29.97p (LPCM) (*⁴)
  23.98p (LPCM) (*⁴)
• [C4K] 4096x2160 (17:9)
• 119.88p (LPCM)
  59.94p (LPCM) (*⁴)
  29.97p (LPCM) (*⁴)
  23.98p (LPCM) (*⁴)
• 59.94Hz / APS-C
• [3.5K] 3536x2656 (4:3)
• 59.94p (LPCM) (*⁴)
  29.97p (LPCM) (*⁴)
  23.98p (LPCM) (*⁴)
• 50.00Hz / FULL
• [6K] 6000x4000 (3:2)
• 25.00p (LPCM) (*⁴)
• [5.9K] 5888x3312 (16:9)
• 25.00p (LPCM) (*⁴)
• [5.7K] 5728x3024 (17:9)
• 50.00p (LPCM) (*⁴)
  25.00p (LPCM) (*⁴)
• 50.00Hz / PIXEL/PIXEL
• [4.8K] 4800x3600 (4:3)
• 50.00p (LPCM) (*⁴)
  25.00p (LPCM) (*⁴)
• [C4K] 4096x2160 (17:9)
• 100.00p (LPCM)
  50.00p (LPCM) (*⁴)
  25.00p (LPCM) (*⁴)
• 50.00Hz / APS-C
• [3.5K] 3536x2656 (4:3)
• 50.00p (LPCM) (*⁴)
  25.00p (LPCM) (*⁴)

INREGISTRARE EXTERNA PE USB-SSD

• Da (ON / OFF)

REDARE IN FLUX

• Wi-Fi / Protocol
• RTMPS
• Wi-Fi / 59.94Hz
• [FHD] 1920x1080
• 59.94p, 8Mbps (H.264)
  29.97p, 6Mbps / 3Mbps (H.264)
• [HD] 1280x720
• 59,94p, 6 Mb/s (H.264)
  29,97p, 4 Mb/s (H.264)
• Wi-Fi / 50.00Hz
• [FHD] 1920x1080
• 50.00p, 8Mbps (H.264)
  25.00p, 6Mbps / 3Mbps (H.264)
• [HD] 1280x720
• 50p, 6 Mb/s (H.264)
  25p, 4 Mb/s (H.264)
• USB Tethering / Protocol
• RTMPS
• USB Tethering / 59.94Hz
• [4K] 3840x2160
• 29.97p, 12.5Mbps (H.264)
• [FHD] 1920x1080
• 59.94p, 16Mbps / 8Mbps (H.264)
  29.97p, 6Mbps / 3Mbps (H.264)
• [HD] 1280x720
• 59,94p, 6 Mb/s (H.264)
  29,97p, 4 Mb/s (H.264)
• USB Tethering / 50.00Hz
• [4K] 3840x2160
• 25.00, 12.5Mbps (H.264)
• [FHD] 1920x1080
• 50.00p, 16Mbps / 8Mbps (H.264)
  25.00p, 6Mbps / 3Mbps (H.264)
• [HD] 1280x720
• 50p, 6 Mb/s (H.264)
  25p, 4 Mb/s (H.264)

VIZOR

• Tip
• Vizor OLED cu afisare in timp real
• Pixeli
• Aprox. 5,76 milioane de puncte
• Camp vizual/marire
• Aprox. 100% / Aprox. 0,78x cu obiectivul de 50 mm la infinit; -1,0 m^-1, atunci cand raportul de aspect este setat la 3:2
• Punct de referinta/ajustare dioptrii
• Aprox. 21 mm la infinit; -1,0 m^-1 / -4,0 - +2,0 (dpt)
• Senzor de ochi
• Da
• Viteza afisare
• 120 fps* / 60 fps *In timpul vizualizarii live in modul de inregistrare foto.

AFISAJ POSTERIOR

• Tip
• Afisaj LCD TFT cu control tactil static
• Dimensiune afisaj
• Rabatabil la unghi liber, 3.0-inci (7.6cm), aspect 3:2
• Pixeli
• Aprox. 1,84 milioane de puncte
• Camp vizual
• Aprox. 100 %

FOCUS (*⁵)

• Tip
• Sistem AF cu detectare de faza (779 puncte) / Sistem AF cu contrast (315 zone)
• Tehnologie DFD
• Da
• Mod focalizare
• AFS (unic)/AFC (continuu)/MF
• Mod AF
• Tracking / Full Area AF / Zone (orizontal / vertical) / Zone / 1-Area+ / 1-Area / Pinpoint
  *Detectia automata poate fi activata pentru a comuta intre Human / Animal / Car / Motorcycle/Bike / Train / Airplane. Cu exceptia cazului in care este setat Pinpoint. Pot fi setate si partile vizate.
• Interval de detectare pentru AF
• EV -6 - 18 (F1,4, echivalent ISO 100, AFS)
• Setare particularizata AF
• Sensibilitate la focalizarea automata, sensibilitate la comutarea zonei de focalizare automata, predictie obiect in miscare
• Lampa de asistenta la focalizare automata
• Da
• Fixare AF
• Seteaza butonul Fn in meniul particularizat la fixare AF
• Controlul inelului de focalizare
• Nelinear / Liniar (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maxim)
  Directia de rotatie a inelului: selectabila inainte si inapoi
• Altele
• AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, Focus Frame Moving Speed, Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, AF-Point Scope, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), AFS Behavior in Video Mode, Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume, AF Micro Adjustment

CONTROL EXPUNERE

• Sistem de masurare a luminii
• Sistem de detectare cu modele multiple pe 1.728 de zone
• Mod masurare lumina
• Multiplu/Central-ponderat/Punctual/Evidentiat-ponderat
• Interval de masurare
• EV 0 - 18 (obiectiv F2, echivalent ISO100)
• Mod inregistrare
• Rotita setare mod
• Program AE (P) / Prioritate diafragma AE (A) / Prioritate viteza obturator AE (S) / Expunere manuala (M) / Personalizat 1, 2, 3, 4, 5 / Auto inteligent
• Comutator foto/video/S&Q
• Modul Foto / Modul Video / Modul Slow&Quick
• Mod personalizat
• Setarile pot fi inregistrate pentru fiecare dintre modurile foto, video si S&Q.
• Compensarea expunerii
• Pas de 1/3 EV ±5 EV (±3 EV pentru film)
• Sensibilitate ISO (sensibilitate iesire standard)
• Imagine statica
• [Normal]
  Auto / 50* / 100-51200 / 102400* / 204800* (pas de 1/3 sau 1 EV) *ISO extins

  [V-Log]
  Auto / 320* / 640-51200 (pas de 1/3 sau 1 EV) *ISO extins
• Film
• „[Normal]
  Cand Dynamic Range Boost este dezactivat: Auto / 50* / 100-51200 / 102400* / 204800* (pas de 1/3 sau 1 EV) *ISO extins
  Cand Dynamic Range Boost este activat: Auto / 50* / 100-25600 (pas de 1/3 sau 1 EV) *ISO extins

  [V-Log]
  Cand Dynamic Range Boost este dezactivat: Auto / 320* / 640-51200 (pas de 1/3 sau 1 EV) *ISO extins
  Cand Dynamic Range Boost este activat: Auto / 500* / 1000-25600 (pas de 1/3 sau 1 EV) *ISO extins

  [HLG]
  Cand Dynamic Range Boost este dezactivat: Auto / 400-51200 / 102400* / 204800* (pas de 1/3 sau 1 EV) *ISO extins
  Cand Dynamic Range Boost este activat: Auto / 400-25600 (pas de 1/3 sau 1 EV) *ISO extins”
• ISO dual nativ
• [Normal]
  Auto (Base ISO 100 / 800): Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO
  Low (Base ISO 100): Auto / 50* / 100-800 *Extended ISO
  High (Base ISO 800): Auto / 400* / 800-51200 / 102400* / 204800* *Extended ISO

  [V-Log]
  Auto (Base ISO 640 / 5000): Auto / 320* / 640-51200 *Extended ISO
  Low (Base ISO 640): Auto / 320* / 640-5000 *Extended ISO
  High (Base 5000): Auto / 2500* / 5000-51200 *Extended ISO

  [HLG]
  Auto (Base ISO 400 / 3200): Auto / 400-51200 / 102400* / 204800* *Extended ISO
  Low (Base ISO 400): Auto / 400-3200
  High (Base ISO 3200): Auto / 3200-51200 / 102400* / 204800* *Extended ISO

  [Cinelike A2 / Cinelike D2 / Cinelike V2]
  Auto (Base ISO 200 / 1600): Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO
  Low (Base ISO 200): Auto / 100* / 200-1600 *Extended ISO
  High (Base ISO 1600): Auto / 800* / 1600-51200 / 102400* / 204800* *Extended ISO
• Scanare sincronizata
• Fotografie / Film
• Fixare AE
• Seteaza butonul Fn in meniul particularizat la fixare AE

SISTEM STABILIZARE IMAGINE

• B.I.S.
• 5-axe
  Centru: 8.0-stop, periferie: 7.0-stop
  *Bazat pe standardul CIPA 2024 [Directia Yaw/Pitch/Roll: distanta de focalizare f=60mm cand se utilizeaza S-R2060.]
• Caracteristica Dual I.S. 2 (Stabilizator imagine dual)
• 5-axe
  Centru: 7.0-stop, periferie: 7.0-stop
  *Bazat pe standardul CIPA 2024 [Directia Yaw/Pitch/Roll: distanta de focalizare f=105mm cand se utilizeaza S-R24105.]

BALANS DE ALB

• Balans de alb
• AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
  AI-AWB poate fi setat in timpul procesarii RAW.
• Reglare balans de alb
• Tendinta albastru/galben, tendinta fucsia/verde
• Setare temperatura de culoare
• 2 500 - 10 000 K in 100 K

OBTURATOR

• Tip
• Obturator cu plan focal
• Mod silentios/tip obturator
• Da/da (Automat/Mecanic/Electronic cu perdea fata/Electronic/Electronic+NR)
• Viteza obturator
• Fotografie: Bulb (max. 30 minute), 1/8.000 - 60
  Obturator electronic cu perdea frontala: Bulb (max. 30 minute), 1/2.000 - 60
  Obturator electronic: Bulb (max. 60 secunde), 1/16.000 - 60
  Filme: 1/16.000 - 1/25* (Amplificare gama dinamica dezactivata)
  Filme: 1/6.400 - 1/25* (Amplificare gama dinamica activata)
  Filme Mod M / Mod MF: 1/16.000 - 1/25* (Amplificare gama dinamica dezactivata)
  Filme Mod M / Mod MF: 1/6.400 - 1/25* (Amplificare gama dinamica activata)
  *Poate fi setat pana la 1/2 de secunda cand expunerea este M si modul de focalizare este MF in modul video.
• Temporizator
• 10 s, 3 imagini/2 s/10 s/Durata particularizata
• Telecomanda
• Telecomanda prin accesoriul DMW-RS2 (comercializat separat)

VARIATIE EXPUNERE

• Variatie AE
• 3, 5, 7 imagini in trepte de 1/3, 2/3 sau 1 EV, max. ±3 EV, individual/rafala
• Variatie diafragma
• 3, 5 sau toate pozitiile
• Variatie focalizare
• Da
• Variatie balans de alb
• 3 imagini pe axa albastru/galben sau pe axa fucsia/verde, setare temperatura de culoare

FOTOGRAFIERE IN RAFALA

• Viteza rafala
• Obturator mecanic/obturator electronic cu perdea fata
• H Image Priority: 8 cadre/sec (AFS/MF), 7 cadre/sec (AFC) (cu Live View)
  H Speed Priority: 10 cadre/sec (AFS/MF), 8 cadre/sec (AFC) (cu Live View)
  H+ Image Priority: 8 cadre/sec (AFC)
  H+ Speed Priority: 10 cadre/sec (AFC)
  M: 5 cadre/sec (AFS/AFC/MF) (cu Live View)
  L: 2 cadre/sec (AFS/AFC/MF) (cu Live View)
• Obturator electronic
• SH Image Priority: 60 cadre/sec (AFS/AFC/MF)
  SH Speed Priority: 70 cadre/sec (AFS/AFC/MF)
  SH PRE Image Priority: 60 cadre/sec (AFS/AFC/MF)
  SH PRE Speed Priority: 70 cadre/sec (AFS/AFC/MF)
  H: 10 frames/sec (AFS/MF), 8 cadres/sec (AFC) (with Live View)
  H+ Image Priority: 9 cadre/sec (AFC)
  H+ Speed Priority: 10 cadre/sec (AFC)
  M: 5 cadre/sec (AFS/AFC/MF) (cu Live View)
  L: 2 cadre/sec (AFS/AFC/MF) (cu Live View)
• Numar de imagini care se pot inregistra
• H/H+/M/L*
  RAW+JPEG: Peste 200 de imagini
  RAW: Peste 200 de imagini
  JPEG: Peste 300 de imagini
  RAW+HEIF: Peste 160 de imagini
  HEIF: Peste 180 de imagini
  *Pana cand viteza de fotografiere in rafala incetineste. Cand inregistrarea este efectuata in conditiile de testare specificate de Panasonic.
  *Cand se utilizeaza un card cu clasa de viteza SD „UHS-II UHS Speed Class 3 (U3)”.

  SH
  RAW / RAW+JPEG / JPEG: 180 imagini
  RAW+HEIF / HEIF: 170 imagini

BLIT

• Tip blit
• Se vinde separat
• Viteza de sincronizare
• Mai putin de 1/250 de secunda *Numarul de ghidare scade la 1/250 de secunda. Numai atunci cand este setat in modul M sau in modul S.
• Mod Blit
• Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *doar pentru iA.
• Reglare iesire blit
• Pas de 1/3 EV ±3 EV
• Sincronizare blit
• Sincronizare prima perdea, sincronizare cea de-a doua perdea
• Control fara fir
• Da (Atunci cand se utilizeaza DMW-FL200L/FL360L/FL580L (comercializat separat)), canal wireless: 1/2/3/4 canale

SETARI DE CULOARE

• Stil fotografie
• Stil fotografie
• Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / LEICA Monochrome / Cinelike A2 / Cinelike D2 / Cinelike V2 / Like709 / V-Log / ARRI LogC3* / Standard (HLG)** / Monochrome (HLG)** / REAL TIME LUT / Like2100 (HLG) / Like2100 (HLG) Full Range*** / My Photo Style 1-4 (5-10)***
  *Este necesara cheia de upgrade software (DMW-SFU3A). **Aceasta optiune poate fi selectata cand formatul HEIF este setat la HDR (HLG). ***Setati la ON din Afisare/Ascundere stil foto pentru a selecta.
• Ajustare imagine
• Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / Dual Native ISO / ISO / WB / LUT / LUT 1 / LUT 2 / LUT Opacity / LUT 1 Opacity / LUT 2 Opacity
  *Setarile reglabile variaza in functie de modul Photo Style, daca se aplica un LUT si de Photo Style-ul de baza al LUT-ului aplicat.
• Filtru
• Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass
• Biblioteca LUT
• Tipuri de fisiere acceptate: .vlt, .cube
  Vlog_709 / Set 1-39 (Set 1-3: Exemplu LUT)
  *REAL TIME LUT in Photo Style, Apply LUT pe butonul Fn, Apply LUT in RAW Processing, LUT View Assist in Log View Assist, LUT-ul poate fi aplicat din aceste configuratii.

FUNCTIA ZOOM

• Zoom hibrid
• Fotografie / Film
• Crop zoom
• Fotografie / Film

FUNCTIE FILM

• Inregistrare Time lapse
• Da
• Animatie stop motion
• Da
• Live cropping
• Da
• Functionare SS/Gain (Amplificare)
• Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
• Nivel luminanta
• 8 biti: 0-255 / 16-235 / 16-255
  10 biti: 0-1023 / 64-940 / 64-1023
• Nivel Master Pedestal
• 31 de trepte
• Bare de culoare / ton de testare
• Da (SMPTE / EBU / ARIB) / da
• Asistenta vizualizare LUT
• Monitor/HDMI
• Asistenta vizualizare HLG
• Monitor (MOD1/MOD2/OPRIT)/HDMI (AUTOMAT/MOD1/MOD2/OPRIT)
• Afisare imagine la raportul de aspect original prin procesare anamorfica
• 2x/1,8x/1,5x/1,33x/1,30x/OPRIT
• False Color
• Da
• Monitor forma de unda/Vectroscop
• Selectabil
• Control cot de curba
• Da (in modul Like709)
• Alte functii
• Indicator cadru rosu pentru inregisrare, cadru albastru pentru streaming

INFORMATII POZITIE PE VERTICALA

• Imagine/Film (Activat/Dezactivat)

INDICATOR DE NIVEL

• Da

BUTON FUNCTIONAL

• Inregistrare
• Exposure Comp. / Dual Native ISO Setting / Dynamic Range Boost / Sensitivity / White Balance / Photo Style / Apply LUT / REAL TIME LUT / Metering Mode / Aspect Ratio / Rec. File Format (Photo) / Switch JPEG/HEIF / JPEG/HEIF Picture Quality / HEIF Format / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG/1 Shot RAW+HEIF / i.Dynamic Range / Color Shading Compensation / Filter Effect / One Push AE / Touch AE / AWB Lock / Exposure Control (Photo Mode) / Exposure Control (Video Mode) / Synchro Scan (Photo) / Synchro Scan (Video) / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting (Photo) / AF Custom Setting (Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / Focus Frame Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Hybrid Zoom (Photo) / Crop Zoom / Live View Composite / Rec. File Format (Video) / Rec Quality / Rec Quality (My List) / Proxy Recording / Slow & Quick Setting / Time Code Display / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Audio Recording / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Hybrid Zoom(Video) / Crop Zoom / Focus Transition / Live Cropping / Live Cropping Settings / Q.MENU / Rec/Playback Switch / Video Record / LVF/Monitor Switch / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Image Flip (Monitor) / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select (LUT View Assist) / HLG View Assist (Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / False Color / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control / AF Micro Adjustment / Lens Information / Destination Card Slot / Streaming / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / Same Setting as Photo Mode / Restore to Default
• REDARE
• Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / HEIF to JPEG Conversion / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Sound Monitoring Channel (Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / Send Images to Frame.io / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default

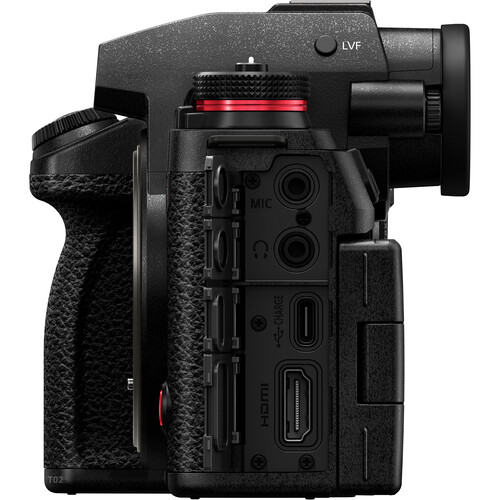

INTERFATA

• USB
• USB de tip C^® (USB 10Gbps)
• HDMI (*⁶)
• HDMI
• HDMI TypeA
  Audio: ON / OFF, MP4: 2ch, MOV: 2ch (Cand [4ch Mic Input] este setat pe OFF.), 4ch (Cand [4ch Mic Input] este setat pe ON.)
• Iesire directa afisaj
• 4:2:2 10bit (Cand [Rec Quality] este setat pe [4:2:2 10bit] sau [4:2:0 10bit].)
  4:2:2 8bit (Cand [Rec Quality] este setat pe [4:2:0 8bit].)
  Down Convert: Auto / C4K/4K / 1080p / 1080i / OFF
• Redare
• ”59,94 Hz: C4K/120p / C4K/60p / C4K/30p / 4K/120p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p*
  50,00 Hz: C4K/100p / C4K/50p / C4K/25p / 4K/100p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p*
  24,00 Hz: C4K/120p / C4K/24p / 4K/120p / 4K/24p / 1080/120p / 1080p
  *Numai pentru redare.
• Intrare pentru telecomanda
• φ 2,5 mm
• Sunet
• Microfon incorporat
• Stereo
  Wind Noise Canceller: OFF / Standard / High
• Intrare pentru Microfon extern / Dispozitiv audio extern
• φ3.5mm pentru microfon extern / dispozitiv audio extern
  MIC ( Plug-in Power) / MIC / LINEA
  Anularea vantului OFF / Low / Low / Standard / High *Cand se ataseaza un microfon de 3,5 mm (vandut separat).
  Microfon special: Stereo / Shotgun *Cand se ataseaza DMW-MS2 (vandut separat).
• Microfon XLR
• Da, cu DMW-XLR2 (vandut separat)
• Intrare microfon 4 canale
• Da, cu DMW-XLR2 (vandut separat)
• Boxa
• Atasare monoauriculara
• Iesire pentru casti
• φ 3,5 mm

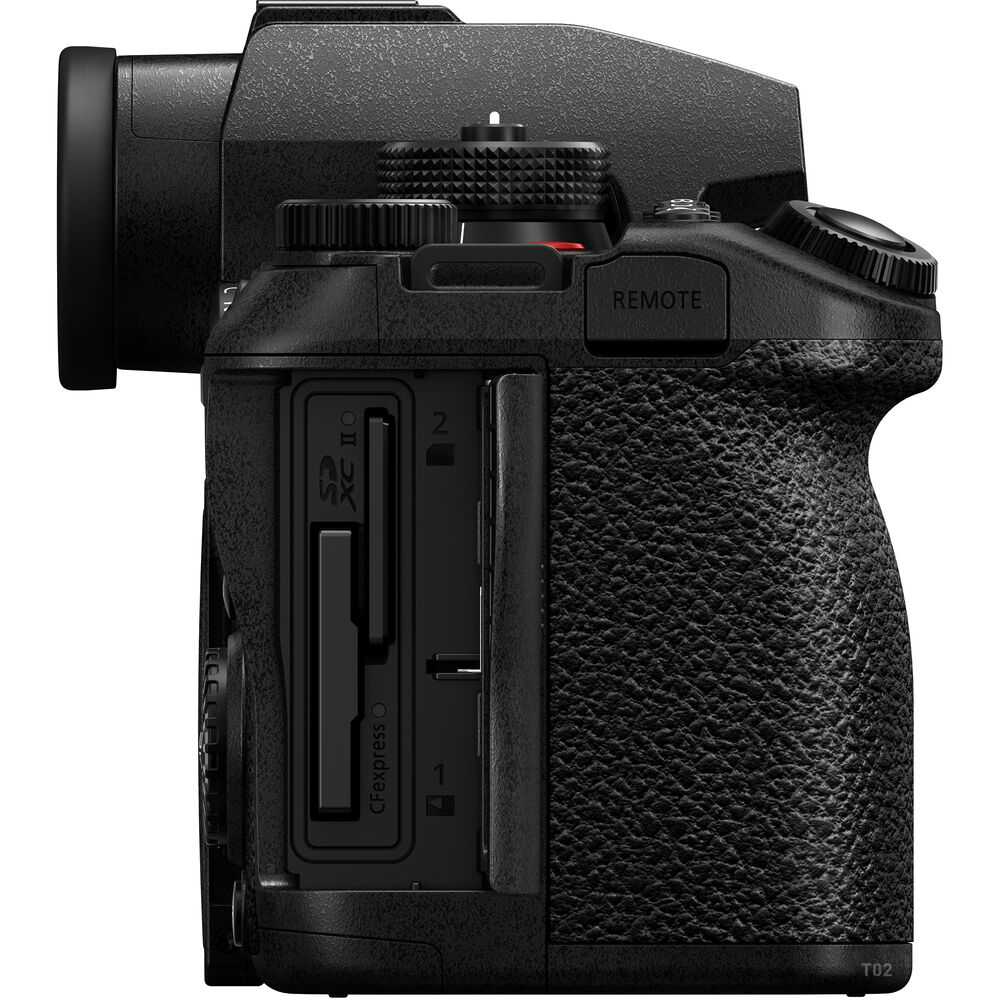

• Fanta cartela
• Slot 1: Card CFexpress tip B
  Slot 2: Card de memorie SD / Card de memorie SDHC* / Card de memorie SDXC*
  *Compatibil cu carduri de memorie SDHC/SDXC standard UHS-I/UHS-II UHS Speed Class 3 si carduri de memorie SDXC standard UHS-II Video Speed Class 90.

INTRARE/IESIRE TC

• Cronometrare in sens ascendent
• Rulare inregistrare/Rulare libera
• Mod cod de timp
• Cod cu eliminare cadru/cod fara eliminare cadru (atunci cand este selectata frecventa de sistem [59,94 Hz].)
• Iesire cod de timp HDMI
• PORNIT/OPRIT
• Setare TC extern
• Sincronizare TC prin Bluetooth®

VENTILATOR

• Auto1 / Auto2 / Fast / Normal / Slow* / OFF** *Setarea Slow nu poate fi utilizata in anumite moduri de calitate a inregistrarii video. **OFF nu poate fi setat cand sunteti in modul Video.

LAMPA

• Lampa Tally (fata/ spate) / Lampa acces la card / Lampa de incarcare / Lampa de conectare la retea

MODUL FARA FIR

• Wi-Fi
• Benzile de 2,4 GHz (STA/AP) (IEEE802.11b/g/n)
  Benzile de 5GHz (STA/AP) (IEEE 802.11a/n/ac)
  Securitate: WPA/WPA2/WPA3
• Bluetooth
• Bluetooth^® v5.0 (Bluetooth Low Energy (BLE))

REZISTENTA LA PRAF SI LA STROPIRE*

• Da.
  *Rezistenta la praf si la stropire nu garanteaza faptul ca nu se vor produce deteriorari daca aceasta camera foto este expusa contactului direct cu praful si cu apa.

ALIMENTARE

• Acumulator
• Acumulator Li-ion (7,2 V, 2 200 mAh, 16 Wh) (inclus in pachet)
  Sursa de alimentare prin USB, incarcare prin USB, livrare energie prin USB
• Durata baterie (standard CIPA)
• Atunci cand se utilizeaza o cartela CFexpress
• Aprox. 350 de imagini (monitor spate), 310 imagini (LVF), 1.000 de imagini (mod LVF economisire energie*) cu S-R24105 / DMW-BLK22
  *Utilizand un card Nextorage CFexpress tip B. In conditiile de testare specificate de Panasonic pe baza standardului CIPA. Cand timpul de trecere in modul de repaus este setat la 1 secunda.
• Cand se folosete un card de memorie SD
• Aprox. 360 de imagini (monitor spate), 320 de imagini (LVF), 1.150 de imagini (mod LVF economisire energie*) cu S-R24105 / DMW-BLK22
  *Utilizand un card de memorie SDXC Nextorage. In conditiile de testare specificate de Panasonic pe baza standardului CIPA. Cand timpul de trecere in modul de repaus este setat la 1 secunda.
• Durata inregistrabila continua (film) (*¹)
• Atunci cand se utilizeaza o cartela CFexpress
• „MP4 [4K/60p (FULL)]: Aprox. 90 min cu S-R24105
  MP4 [FHD/30p (FULL)]: Aprox. 120 min cu S-R24105”
• Cand se folosete un card de memorie SD
• MP4 [4K/60p (FULL)]: Aprox. 90 min cu S-R24105
  MP4 [FHD/30p (FULL)]: Aprox. 130 min cu S-R24105
• Durata inregistrabila efectiva (film) (*¹)
• Atunci cand se utilizeaza o cartela CFexpress
• „MP4 [4K/60p (FULL)]: Aprox. 45 min cu S-R24105
  MP4 [FHD/30p (FULL)]: Aprox. 60 min cu S-R24105”
• Cand se folosete un card de memorie SD
• MP4 [4K/60p (FULL)]: Aprox. 45 min cu S-R24105
  MP4 [FHD/30p (FULL)]: Aprox. 65 min cu S-R24105
• Maner pentru compartimentul bateriilor
• DMW-BG2 (se vinde separat)

DIMENSIUNI/GREUTATE

• Dimensiuni (L x I x A)
• Aproximativ 134,3 x 102,3 x 91,8 mm / 5,29 x 4,03 x 3,61 inch (numai corp, fara proeminente)
  Aproximativ 134,3 x 102,3 x 187,8 mm / 5,29 x 4,03 x 7,40 inch (cu S-R24105, fara proeminente)
• Greutate
• Aprox. 800 g (corp, capac pentru suport blitz, acumulator, card de memorie SD x 1) (fara capacul corpului)
  Aprox. 718 g (corp, capac pentru suport blitz) (fara capacul corpului)

MEDIU DE FUNCTIONARE

• Temperatura in stare de functionare
• -10 ℃ la 40 ℃ (14℉ la 104℉)
  ･Performanta acumulatorului (numarul de fotografii care pot fi facute/timpul de inregistrare disponibil) poate scadea temporar la temperaturi cuprinse intre -10 ℃ si 0 ℃ (14℉ si 32℉).
  ･In cazul utilizarii la temperaturi scazute (-10℃ la 0℃ (14℉ la 32℉)), atasati un obiectiv Panasonic cu o temperatura de functionare minima recomandata de -10℃ (14℉).
• Nivel de umiditate in stare de functionare
• 10%RH pana la 80%RH

ACCESORII STANDARD

• Software
• LUMIX Lab / LUMIX Flow
  ･Acest soft este utilizat pentru a controla o camera digitala Panasonic de pe un smartphone. Consultati site-ul de mai jos pentru a descarca si instala softul.


  LUMIX Tether
  ･Acest soft este utilizat pentru a controla o camera digitala Panasonic de pe un computer. Acesta va permite sa modificati diverse setari ale camerei, sa efectuati inregistrari de la distanta si sa salvati imaginile inregistrate de la distanta pe PC. Consultati site-ul de mai jos pentru a descarca si instala software-ul.

  ･ Software-ul pentru procesarea fisierelor RAW pe computer nu este inclus in pachet cu aceasta camera. Pentru a face acest lucru, SILKYPIX Developer Studio este disponibil pentru descarcare de pe site-ul Adwaa folosind un computer conectat la Internet.
