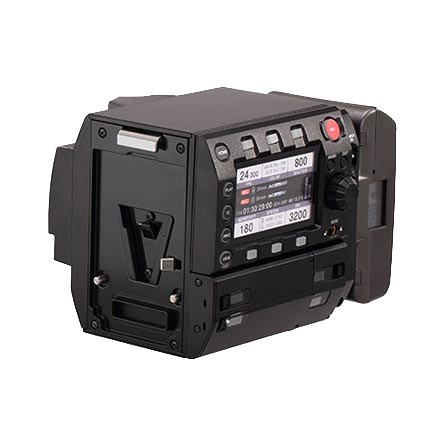

Panasonic Recording Module AU-VREC1G
33037Brand: PANASONIC
Stoc epuizat
Panasonic Recording Module (AU-VREC1G) – este partea modulara de inregistrare ce se poate atasa la Varicamurile Panasonic. Inregistreaza pe expressP2 card, P2 card, microP2, in diverse formate, in functie de body-ul camerei de care este atasat, cu
Euro (pret fara TVA) : 13,754 €
Pret Lei (pret fara TVA) : 71,520 Lei
Pret Lei (pret fara TVA) : 71,520 Lei
Pret (TVA inclus) : 86539 Lei
Nu exista manuale disponibile pentru acest produs.
Panasonic Recording Module AU-VREC1G

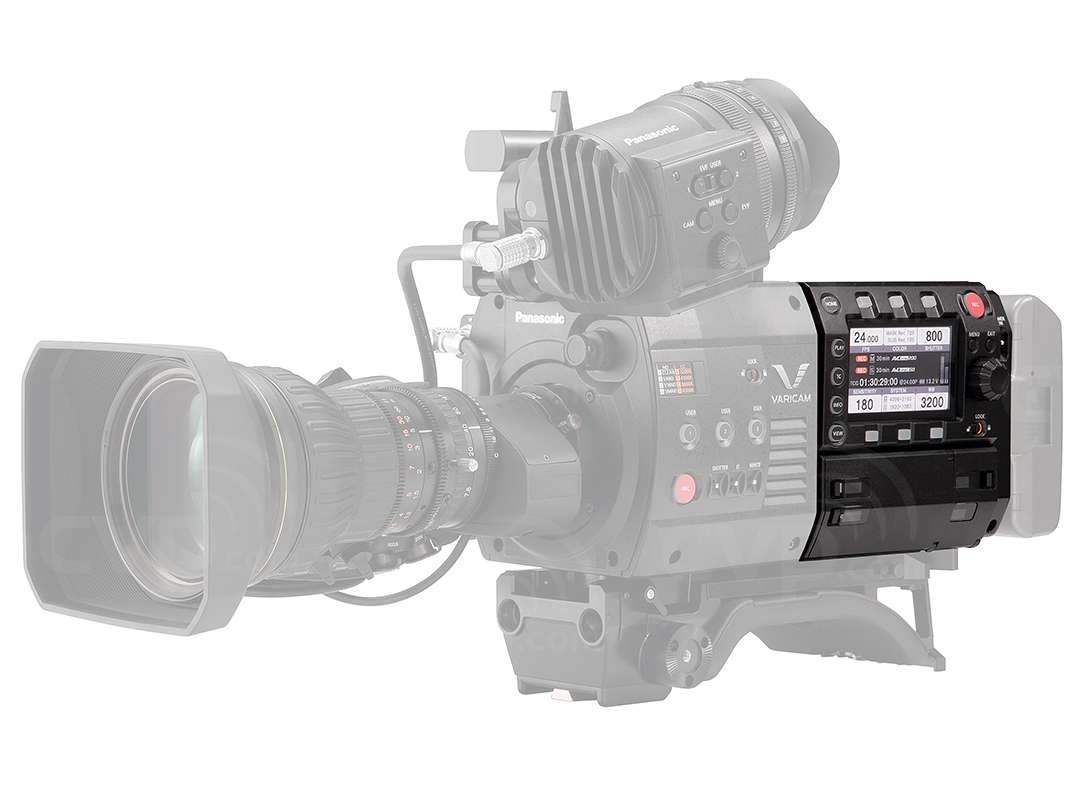

Panasonic Recording Module AU-VREC1G este partea modulara de inregistrare ce se poate atasa la modelele Panasonic Varicam si . Inregistreaza pe expressP2 card, P2 card, microP2, in diverse formate, in functie de body-ul camerei de care este atasat, cu un framerate variabil. Inregisttrarea se face la rezolutie4096 x 2160, 3840 x 2160, 1920 x 1080 - 4K RAW folosind camera AU-V35C1G , sau la rezolutie1920 × 1080, 1280 × 720 folosind cameraAU-V23HS1G .
cod: 33037
COMPATIBILITATE
- Panasonic VariCam HS
- Panasonic VariCam 35
General
- expressP2 card, P2 card, microP2 card
- SDI Output: 4 x 1.5G / 3G-SDI - SDI Out, Mon Out 1 & 2, VF SDI Out
- Casti (3.5mm) - Stereo mini jack
- USB: Device - Type B connector, 4-pin; Host - Type A connector, 4-pin
- 2 x Audio Input - XLR3, LINE/MIC/MIC+48V/AES switchable
- Power Input: DC - XLR 4 -pin, DC 12 V (DC 11.0 V to 17.0 V)
- Power Output: DC/RS - 4-pin, DC12 V (DC11.0 V to 17.0 V), maximum output current 1.0 A; DC - 2-pin, DC12 V (DC11.0 V to 17.0 V), maximum output current 1.0 A
- Genlock In - HD (1.5G)/3G SDI, 0.8 V[p-p], 75 Ohm
- Integrated Speaker - 20mm diameter, round
- Timecode - In/Out: Head rBNC x 1, Input/Output switching
- AVC-Intra422 - Main & Sub Recorder
- AVC-Intra100 - Main & Sub Recorder
- AVC-LongG25 - Sub Recorder
- AVC-LongG50 - Sub Recorder
- AVC-Intra4K444 - Main Recorder
- AVC-Intra200 - Main Recorder
- AVC-Intra2K422 - Main & Sub Recorder
- Apple ProRes 4444 - Main Recorder
- AVC-Intra2K444 - Main Recorder
- AVC-Intra4K-LT - Main Recorder
- AVC-Intra4K422 - Main Recorder
- AVC-Intra444 - Main Recorder
- 2K - 2048×1080 / 59.94p, 50p, 29.97p, 25p, 24p, 23.98p
- UHD - 3840×2160 / 59.94p, 50p, 29.97p, 25p, 23.98p
- 4K - 4096×2160 / 59.94p, 50p, 29.97p, 25p, 24p, 23.98p
- HD - 1920×1080 / 59.94p, 50p, 29.97p, 25p, 23.98p, 59.94i, 50i
Packaging Info
- 1.8 kg
- 304 mm x 304 mm x 381 mm
Panasonic Recording Module AU-VREC1G;; Garantie 3 ani;
camera AU-V35C1G ; camera AU-V23HS1G ; P2 ; micro P2 , express P2
