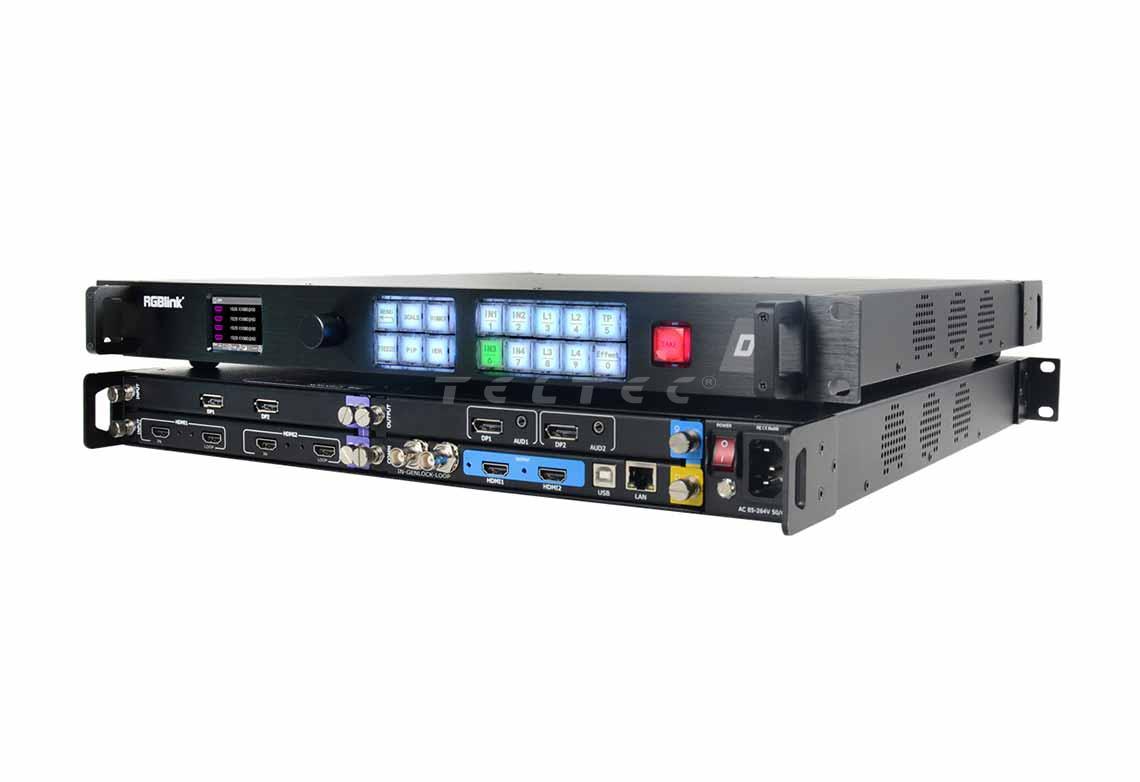

RGBlink D4 4K HDR Scaler & Switcher
120-0004-01-0Brand: RGBlink
Pret Lei (pret fara TVA) : 14,832 Lei
Nu exista manuale disponibile pentru acest produs.
RGBlink D4 4K HDR Scaler & Switcher
Cu orice intrare si iesire standard, D4 este mult mai mult decât un scaler 4K, indiferent daca este pentru scalare, comutare de prezentare, distributie 4K sau difuzare, D este o solutie ideala. Exista mai multe moduri de functionare la bord, ceea ce face ca D4 sa fie o solutie foarte flexibila pentru o gama larga de aplicatii. Cu adevarat o solutie multifunctionala, D4 accepta o gama larga de semnale de intrare intr-o gama larga de formate - Intrarile pot fi convertite, scalate, transcodificate la iesiri standard in HDMI 2.0 sau iesiri in porturi optionale, inclusiv DisplayPort.Scalerele de iesire 4K cu canal dual asigura procesare pe 12 biti si spatiu color YUV4: 4 4.Complet modular, D4 este o prezentare moderna care comuta la cerere.
Pentru mai multe informatii rugam consultati site-ul producatorului RGBLink.
cod: 120-0004-01-0Urmariti mai jos o prezentare a produsului:
Performanta
- SDI: SMPTE ST 2082-1, SMPTE ST 2081-1, SMPTE ST 424, SMPTE ST 292-1, SMPTE ST 259, DVB-ASI, MADI
- HDMI: 2.0
- HDMI VESA: 800Ñ…600@60 | 1024x768@60 / 1280x768@60 / 1280x800@60 / 1280x1024@60 / 1360x768@60 / 1366x768@60 / 1400x900@60 | 1600x1050@60 / 1600x1200@60 / 1680x1050@60 |1920x1080@23.98/24/25/29.97/30/50/59. 94/60 / 1920x1200@60 2048x1152@60 | 2560x812@60 | 2560x816@60 | 2560x1600@60 | 3840x1080@60| 3840x2160@23.98/24/25/29.97/30/50/60
- HDMI SMPTE: 720p @ 25/30/50/60 / 1080p@23.98/24/25/29.97/30/50/59. 94/60 / 2160p@30/50 / 60
- DP 1.2 SMPTE: 480i | 576i | 720p@25/30/50/60 | 1080i@50/59. 94/60 | 1080p@23.98/24/25/29.97/30/50/59,94/60 | 2160p@30/50/60
- DP 1.2 VESA: 1920x1200@60 / 2560x1600@60 |3840x2160@23.98/24/25/29.97/30/50/60 | 4096x2160@50/60
- DP 1.2 SMPTE: 720p@25/30/50/60 | 1080i@50/59.94/60 | 1080Ñ€@23,98/24/25/29.97/30/50/59.94/60 | 2160p@30/50/60
- HDMI 2.0 VESA: 800Ñ…600@60 | 1024x7684960 | 1280x768@60 | 1280x800@60 |1280x1024@60 | 1360x768@60 / 1366x768@60 / 1400x900@60 / 1600x1050@60 / 1600x1200@60 1680x1050@60 | 1920x1080@23.98/24/25/29.97/30/50/59-94/60 / 1920x1200@60 | 2048x1152@60 | 2560x812@60 | 2560x816@60 | 2560x1600@60 | 3840x1080@60 | 3840x2160@23.98/24/25/29.97/30/50/60 | 4096x2160@50/60 / 7680x1080@60
- HDMI 2.0 SMPTE: 720p @ 25/30/50/60 / 1080p@23.98/24/25/29.97/30/50/59. 94/60 2160p@30/50/60
- 12G SDI SMPTE: 480i / 576i / 720p @ 25/30/50/60 / 1080i@50/59. 94/60 | 1080p@23.98/24/25/29.97/30/50/59. 94/60
- DisplayPort: 1.2
- DVI: Dual Link
Putere
- 100 W
- AC 90-264 VAC, 50/60 Hz
General
- 0 - 45°C
- 7.2 Kg
- 480 x 474 x 45 mm
- 10% ~ 85%
Conectori
- 1 x IEC
- modul DVI: 4xDVI
- modul DP 1.2: 2xDisplayPort
- HDMI 2.0: 2xHDMI-A
- modul 12G SDI: 4xBNC (2 In/2 Loop)
- modul 3G SDI: 4xBNC (2 In/2Loop)
- modul DP1.2: 2xDisplayPort
- modul 4k HDMI: 4xHDMI-A (2 In/2 Loop)
- Genlock: 2xBNC ; LAN: 1xRJ45 ; Serial USB In: 1xUSB Type B
1 x RGBLink D4 4k HDR Scaler & Switcher
Garantie 12 luni
