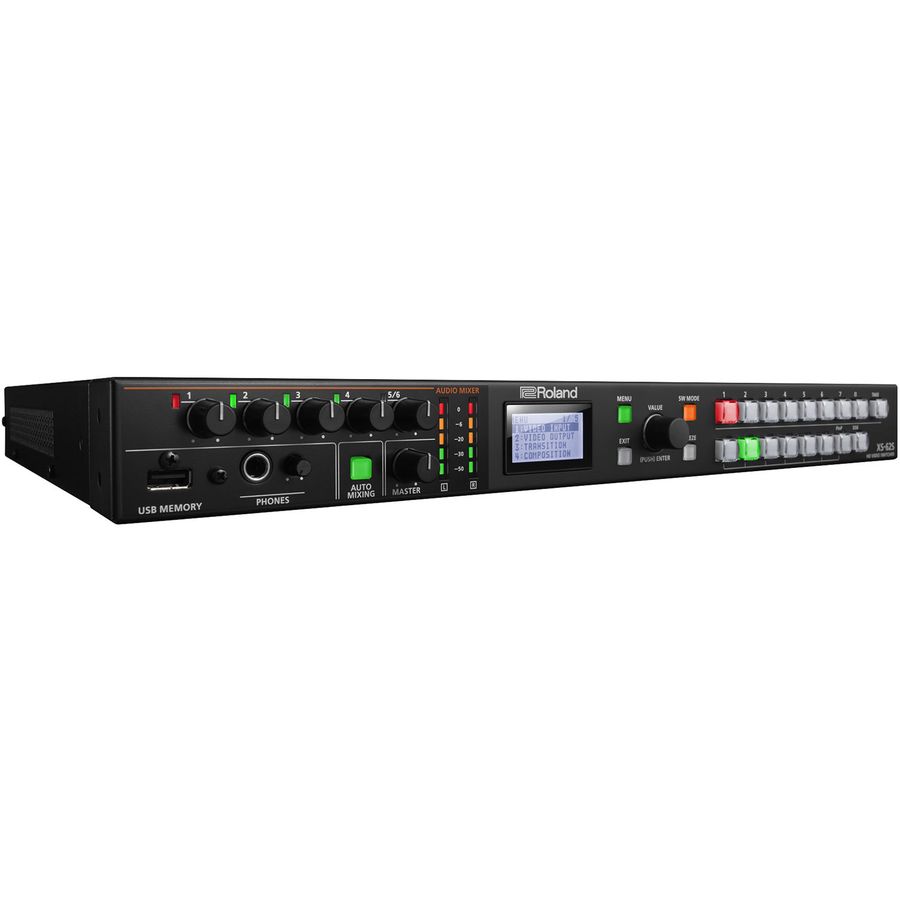

Roland XS-62S 6-Channel HD Video Switcher with Audio Mixer & PTZ Camera Control (1 RU)
XS-62SBrand: Roland
Pret Lei (pret fara TVA) : 13,896 Lei
Nu exista manuale disponibile pentru acest produs.
Roland XS-62S 6-Channel HD Video Switcher with Audio Mixer & PTZ Camera Control (1 RU)

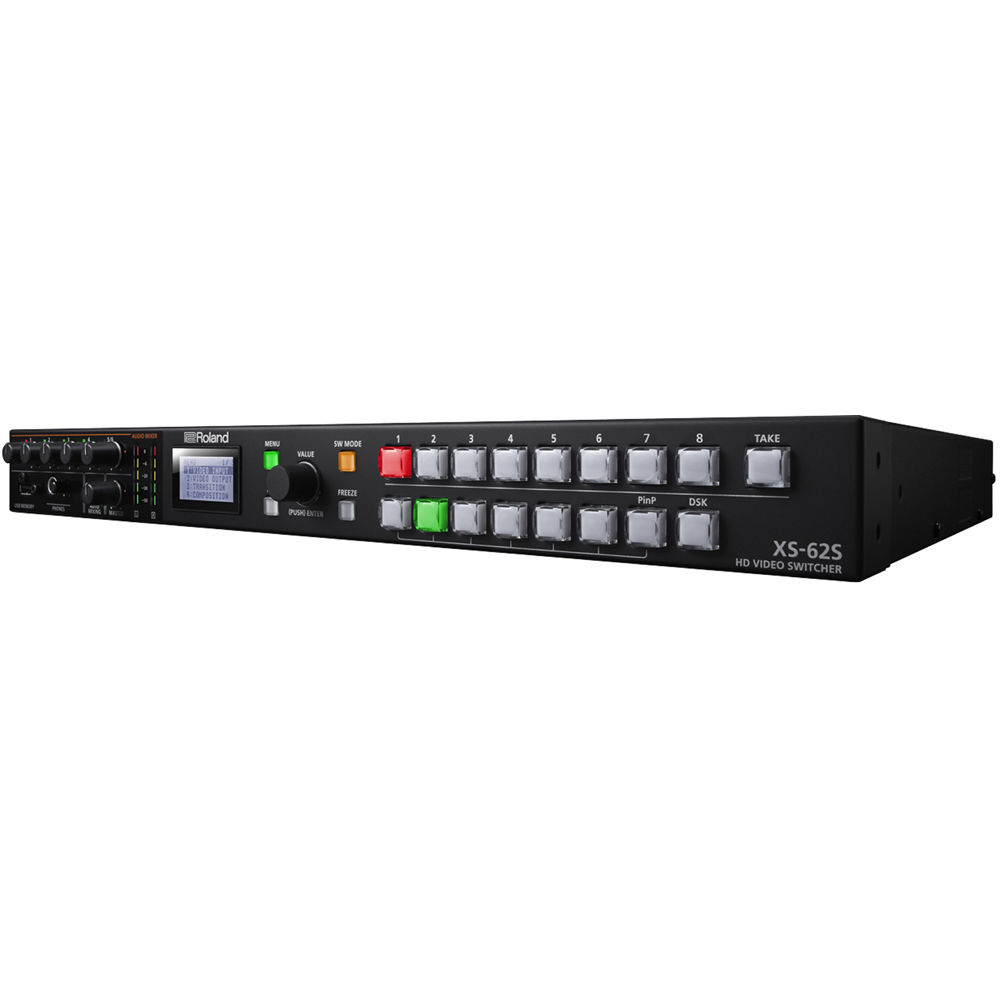

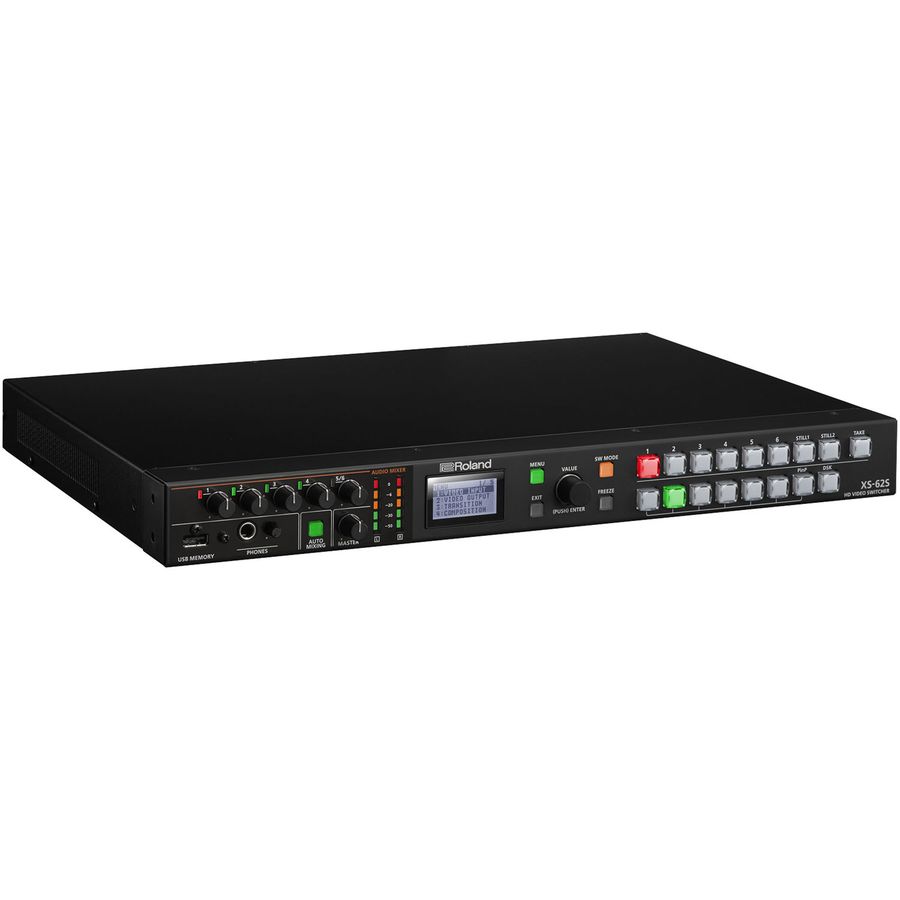

Roland XS-62S este un switcher video HD cu 6 canale, compact si montabil pe rack, care poate comuta intre surse 3G-SDI, HDMI si RGB, impreuna cu doua imagini statice stocate in memoria interna. Modurile de comutare video PGM / PST, dissolve si matrix pot fi selectate, permitând o gama larga de aplicatii. XS-62S dispune de un mixer audio cu 18 canale care include patru mufe TRS, imperechere RCA stereo si deblocare audio din cele sase intrari video. Aceasta solutie integrata este perfecta pentru evenimente la locatii (sportive / prezentari / evenimente speciale), conferinte AV ale corporatiilor si sali de clasa pentru invatamant la distanta. XS-62S este o unitate 1 RU cu butoane de control pe panoul frontal si ecran de meniu. Poate fi controlat si de pe un PC Windows sau Mac folosind software-ul de control de la distanta in timp real.
Mai multe informatii pe site-ul producatorului, roland.com. Reviews utilizatori din lumea intreaga pe bhphotovideo.com.
cod: XS-62SUrmariti in clipul de mai jos o prezentare a acestui produs:
Video
- 4:2:2 (Y/Pb/Pr)/8 biti

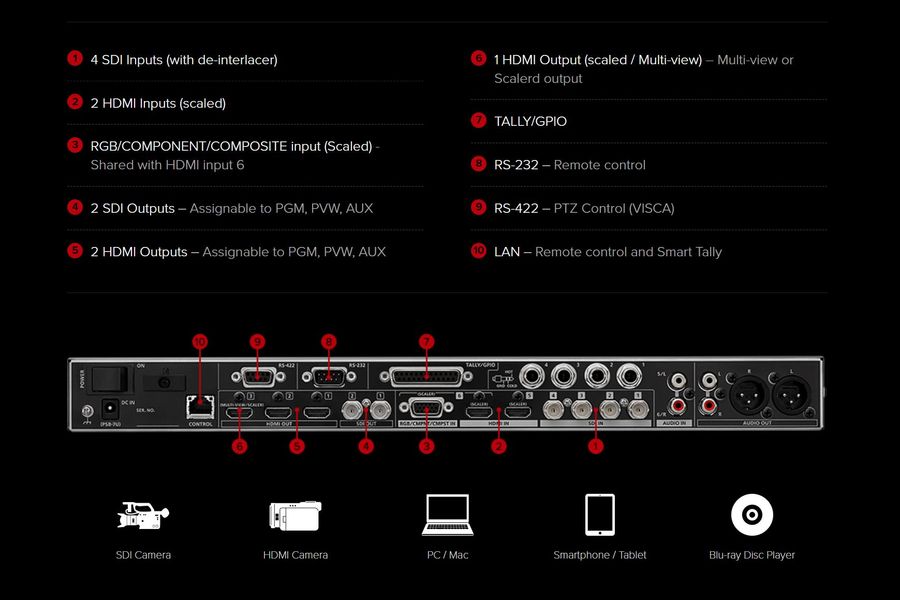

- 4 x SDI tip BNC (conform SMPTE 424M (SMPTE 425M-AB), 292M)
- 2 x HDMI tip-A (suport HDCP)
- 1 x HD DB-15 (selectati una dintre HDMI, RGB/COMPONENT sau COMPOSITE)
- 2 x SDI tip BNC (conform SMPTE 424M (SMPTE 425M-AB), 292M)
- 3 x HDMI tip-A (suport HDCP)
- RGB: 0.7 Vp-p, 75 ohms (H, V: 5 V TTL)
- COMPONENT: 1.0 Vp-p, 75 ohms (Bi-level sync/Tri-level sync)
- COMPOSITE: 1.0 Vp-p (Y), 0.286 Vp-p (C: NTSC), 0.3 Vp-p (C: PAL), 75 ohms
- Intrari SDI 1-4 (conforme cu SMPTE 296M, 274M):
- 1080p: 59.94/50
- 1080i: 59.94/50
- 720p: 59.94/50
- Intrari HDMI 5-6:
- RGB/component/composite input 6
- 1080p: 59.94/50
- 1080i: 59.94/50
- 720p: 59.94/50
- 576p/i: 50
- 480p/i: 59.94
- VGA (640 x 480, 60 Hz)
- SVGA (800 x 600, 60 Hz)
- XGA (1024 x 768, 60 Hz)
- WXGA (1280 x 800, 60 Hz)
- SXGA (1280 x 1024, 60 Hz)
- FWXGA (1366 x 768, 60 Hz)
- SXGA+ (1400 x 1050, 60 Hz)
- UXGA (1600 x 1200, 60 Hz)
- WUXGA (1920 x 1200, 60 Hz)
- Bitmap File (.bmp): Maximum 1920 x 1080 pixels, 24-bit color, uncompressed
- PNG File (.png): Maximum 1920 x 1080 pixels, 24-bit color

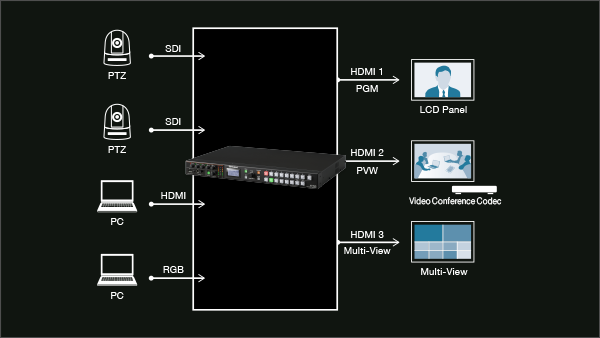

- Iesiri SDI 1-2 (conforme cu SMPTE 296M, 274M) / Iesiri HDMI 1-2:
- 1080p: 59.94/50
- 1080i: 59.94/50
- 720p: 59.94/50
- HDMI Output 3 (Multiview): 1080p: 59.94/50
- HDMI Output 3 (Scaler):
- 1080p: 59.94/50
- 720p: 59.94/50
- 576p: 50
- 480p: 59.94
- SVGA (800 x 600, 60 Hz)
- XGA (1024 x 768, 60 Hz)
- WXGA (1280 x 800, 60 Hz)
- SXGA (1280 x 1024, 60 Hz)
- FWXGA (1366 x 768, 60 Hz)
- SXGA+ (1400 x 1050, 60 Hz)
- UXGA (1600 x 1200, 60 Hz)
- WUXGA (1920 x 1200, 60 Hz)
- Output Mode: PGM-PST, dissolve, matrix
- Transition: Cut, mix (dissolve/FAM/NAM), wipe (30 types)
- Composition: PiP (square, circle, heart, diamond), split (4 types), DSK (luminance, chroma)
- Altele: Flip horizontal, Still Image Capture, Still Image Playback, Test pattern output, Input Freeze
Audio
- Sample Rate: 24 biti/48 kHz
- Intrare SDI: PCM liniar, 24-bit, 48 kHz, 2 canale

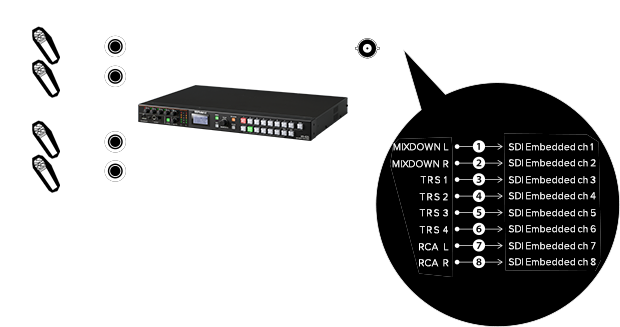

- Iesire SDI: PCM liniar, 24-bit, 48 kHz, 8 canale
- Intrare / Iesire HDMI: PCM liniar, 24-bit, 48 kHz, 2 canale
- 4 x SDI BNC
- 2 x HDMI tip-A
- 4 x 1/4" TRS phone jack
- 2 x RCA (phono type)
- 2 x SDI BNC
- 3 x HDMI tip-A
- 1 x RCA (phono type)
- 1 x stereo de 3.5 mm (TRS)
- Nivelul de intrare:
- Intrari Audio 1-4: -60 - +4 dBu (maxim: +22 dBu)
- Intrari Audio 5-6: -10 dBu (maxim +8 dBu)
- Impedanta de intrare:
- Intrari Audio 1-4:
- 10 kOhms (0 to 23 dBu, head amp gain)
- 5 kOhms (24-to 64 dBu, head amp gain)
- Intrari Audio 5-6: 15 kOhms
- Nivelul de iesire:
- Iesire Audio:
- 4 dBu (XLR type, 22 dBu max input level)
- -10 dBu (RCA phono type, 8 dBu max input level)
- Nivel casti: 92 mW + 92 mW (32 Ohmi)
- Impedanta de iesire: 600 Ohmi (tip XLR), 1 kOhm (tip RCA phono)
- Impedanta casti: 10 Ohmi
- Auto-mixing, EQ, delay, compressor, HPF, gate, reverb, multiband compressor, limiter
General
- Telecomanda: 1 x RS-232 tip DB-9 (Tata)
- LAN: 100BASE-TX RJ45 x 1
- Memorie USB: 1 x USB tip-A

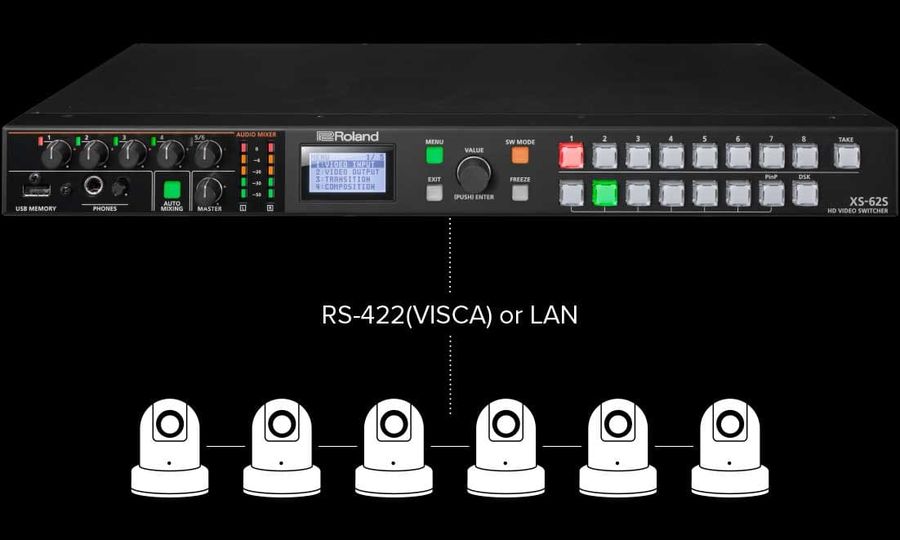

- VISCA: 1 x RS-422 tip DB-9 (Mama)
- 1 x DB-25 tally/GPIO (Mama)
- Functie de memorie automata: 8; Panel lock function; EDID Emulator; Smart tally; Remote camera control
- Graphic LCD: 128 x 64 pixeli
- Alimentare: Adaptor AC
- Intensitate curent: 2.6 A
- Consum de energie: 31 W
- De la 0° C pana la 40° C
- 481 mm x 333 mm x 44 mm
- 3.6 kg
Roland XS-62S 6-Channel HD Video Switcher; Adaptor de alimentare AC; Cablu de alimentare; Picioruse de cauciuc; Garantie limitata de 1 an
