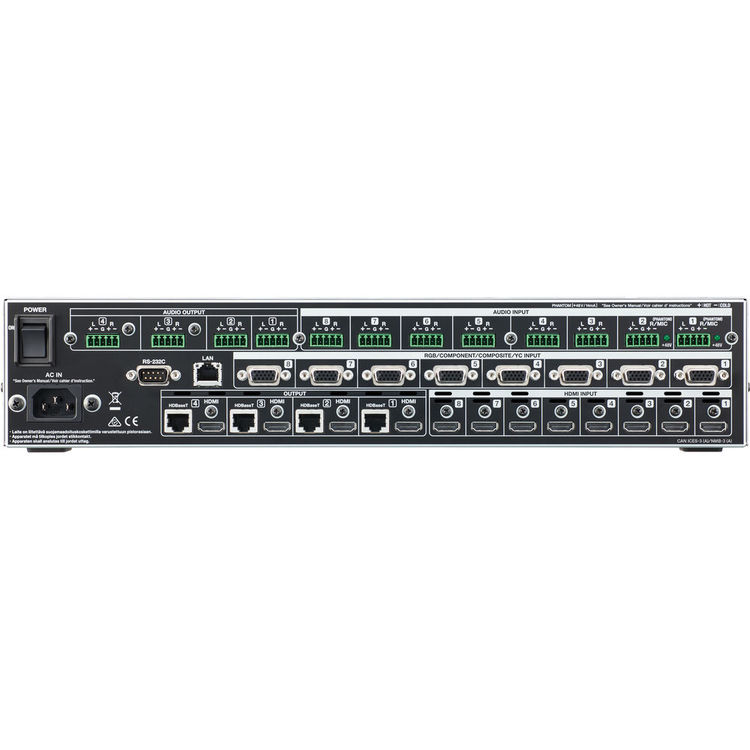

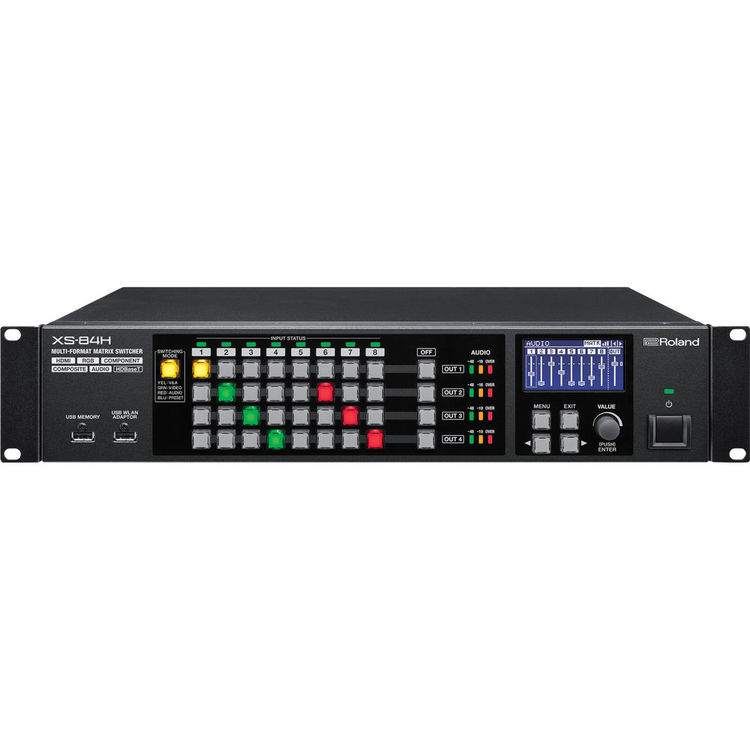

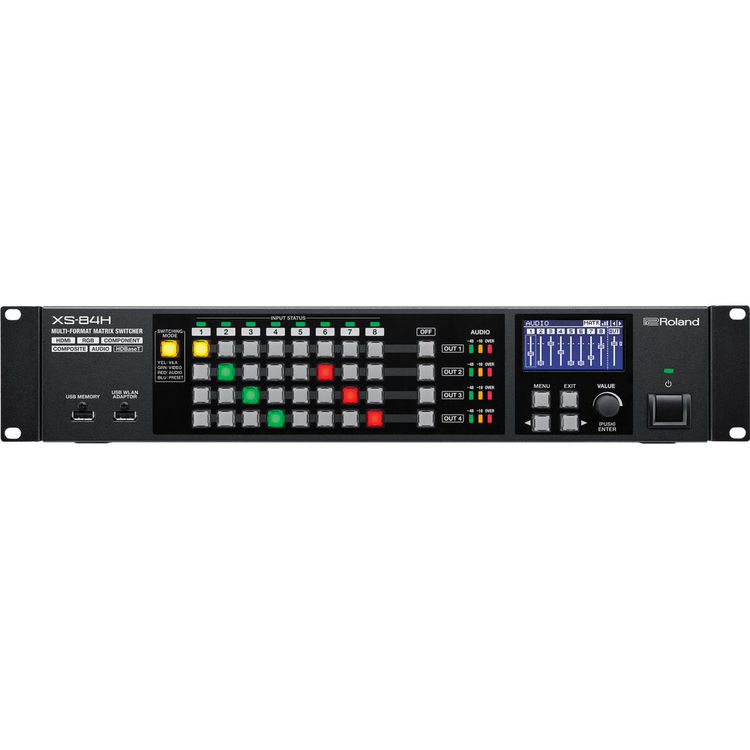

ROLAND XS-84H 8x4 Multi-Format AV Matrix Switcher
XS-84HBrand: Roland
Pret Lei (pret fara TVA) : 27,744 Lei
Nu exista manuale disponibile pentru acest produs.
ROLAND XS-84H 8x4 Multi-Format AV Matrix Switcher
Roland XS-84H 8x4 Multi-Format AV Matrix Switcher este special conceput pentru instalatii fixe care au nevoie de video inregrat de inalta calitate si conversie/comutare audio. XS-84H este adaptabil, accepta 8 intrari HDMI, RGB/Component/S-video/Composite si pana la 4 iesii HDMI sau HDBaseT cu scalere pentru a fi capabil de picture-in-picture, resizing, rotating, si flipping. Audio poate fi codat in iesiri prin 8 intrari stereo audio (2 mic) si/sau HDMI audio dar si decodat pe iesire HDMI audio. Are functii aditionale precum control iPad, emulatie EDID si management HDCP. Ofera suport pentru rezolutia maxima de WUXGA (1920 x 1200) si 1080p, cu divizoare incorporate. Mixer audio digital cu 16 canale cu efecte audio digitale (HPF, 4 Band EQ, noise gate/expander si compressor) si delay la iesire. Suport pentru RS-232C, retea si iPad.
Mai multe informatii pe site-ul producatorului, roland.com. Reviews utilizatori din lumea intreaga pe bhphotovideo.com.
cod: XS-84HUrmariti un clip in care se explica functionarea acestui produs:
Video
- 4:4:4 (YPbPr/RGB), 10-bit
- 8 x HDMI tip-A (suport HDCP)
- 8 x HD DB-15 (selectati una dintre HDMI, RGB/COMPONENT sau COMPOSITE)
- 4 x HDMI tip-A (suport HDCP)
- 4 x HDBase T (RJ-45)
- RGB/Component: 1.0 Vp-p, 75 ohms (H, V: 5 V TTL)
- COMPOSITE: 1.0 Vp-p (Y), 0.286 Vp-p (C: NTSC), 0.3 Vp-p (C: PAL), 75 ohms
- HDMI: pana la 1080p/59.94, pana la 1920x1200/60
- Component: pana la 1080p/59.94
- RGB: pana la 1920x1200/60 Reduced Blanking (Maximum 1920 x 1200 pixels, 24 bit per pixel, uncompressed)
- Composite: 480i/59.94, 576i/50
- S-video: 480i/59.94, 576i/50
- Bitmap File (.bmp): Maximum 1920 x 1080 pixels, 24-bit color, uncompressed
- HDMI: pana la 1080p/59.94, pana la 1920x1200/60
- HDBaseT: pana la 1080p/59.94, pana la 1920x1200/60
- Transition: Cut
- Composition: PinP
- Altele: Vertically flip, Horizontally flip, Rotated 90 degrees
Audio
- Sample Rate: 24 biti/48 kHz
- HDMI: PCM liniar, 24-bit, 48 kHz, 8 canale
- Digital: 8 x HDMI tip-A
- Analog: 8 x 5-pin terminal block connector
- Digital: 2 x HDMI tip-A
- Analog: 2 x 5-pin terminal block connector
- Canalele 1-2: -60 - +4 dBu (maxim: +22 dBu), 10 kOhms (0 to 23 dBu, head amp gain), 5 kOhms (24-to 64 dBu, head amp gain)
- Canalele 3-8: +4 dBu (maxim: +22 dBu), 8.5 kOhms
- Canalele 1-4: +4 dBu (maxim: +22 dBu), 600 Ohms
- Intrare: High-pass filter, 4-band equalizer, Gate/Expander, Compressor
- Iesire: 4-band equalizer, Gate/Compressor, Delay
General
- Telecomanda: 1 x RS-232 tip DB-9 (Tata)
- LAN: RJ45 x 1
- Memorie USB: 2 x USB tip-A pentru WNA-1100RL
- 2 x Graphic LCD: 128 x 64 pixeli
- AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)
- Consum de energie: 50 W
- De la 0° C pana la 40° C
- 481 mm x 333 mm x 88 mm
- 5.3 kg
Roland XS-84H 8x4 Multi-Format AV Matrix Switcher; cablu alimentare; 5 x picioare cauciuc; 12x Euroblock Plug; Garantie 2 ani
