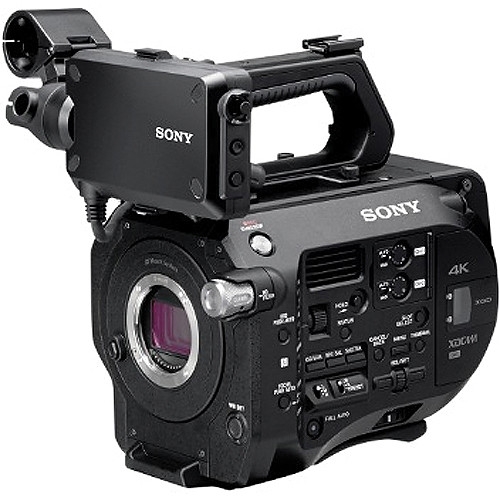

Sony PXW-FS7 II XDCAM Super 35 Camera System (Body)
PXW-FS7M2Brand: SONY
Pret Lei (pret fara TVA) : 36,096 Lei
Nu exista manuale disponibile pentru acest produs.
Sony PXW-FS7 II XDCAM Super 35 Camera System (Body)
SonyPXW-FS7 II XDCAM Super 35 este un sistem 4K flexibil care vine in completarea modelului original de FS7. Conceput ca o camera care este acasa la ea in productii de la documentare in stil "Cinéma Vérité", reality TV, reclame la aplicatii corporate. Are un senzor Super 35mm care va permite sa inregistrati imagini cu DOF cinematic. Camera incorporeaza o montura E-mount compatibila cu obiectivele cu aceeasi montura si accepta toate conexiunile electronice. Montura care se blocheaza reduce jocul obiectivului, si va permite sa folositi majoritatea obiectivelor de 35mm, inclusiv PL, EF, Leica si Nikon prin adaptoarele optionale. Acest E-mount mai puternic este ideal pentru folosirea cu obiective cine-zoom mai grele si mai lungi, fara a fi nevoie de un suport de obiectiv in plus. In spatele monturii de obiectiv se afla un sistem variabil ND care ofera un filtru clar si 3 preseturi care pot fi setate de utilizator. ND-ul variabil poate fi ajustat pentru a oferi intre 2 si 7 stop-uri de ND. Camera poate inregistra videon pe carduri media XQD optionale fie in DCI 4K (4096 x 2160) sau UHD 4K (3840 x 2160) la pana la 59.94 fps sau HD la pana la 180 fps. Camera inregistreaza in formate XAVC-I, XAVC-L sau MPEG-2. De retinut este faptul ca inregistrarea MPEG-2 nu accepta vitezele de transfer mari de care este capabila camera cand se inregistreaza in UHD, fiind limitata inregistrarea in acest format la HD. Camera incorporeaza slot-uri de carduri media Dual XQD care accepta inregistrare simultana sau unul in continuarea celuilalt. Un grip ergonomic va ofera controlul multiplelor functii ale camerei si un suport cu lungime ajustabila pentru brat. Review-uri ale utilizatorilor pe bhphotovideo.com.
cod: PXW-FS7M2O prezentare a acestei camere:
General
- Super 35mm Single-Chip Exmor CMOS
- 57 dB (Y)
- 2000 lx
- ISO 2000 (S-Log3 Gamma D55 Light source)
- 0.7 lux: +18 dB,23.98p,Shutter OFF,ND Clear, f/1.4
- NTSC / PAL
- Clear, 1/4, 1/16, 1/64
- 3.5" / 8.8 cm, Approx: 1.56M dots
- Monaural
- 1/3 to 1/9000 of a sec
- Preset, Memory A, Memory B (1500K-50000K)/ATW
- -3, 0, 3, 6, 9, 12, 18 dB, AGC
- STD, HG, User, S-log3
- 4K 4096 x 2160: 12-bit raw;
- UHD 3840 x 2160: 10-bit 4:2:2 XAVC-I; 8-bit 4:2:0 XAVC-L;
- 2K 2048 x 1080: 12-bit raw;
- HD 1920 x 1080:10-bit 4:2:2 XAVC-I; 10-bit 4:2:2 XAVC-L; MPEG2 4:2:2
- HD 1280 x 720:MPEG2 4:2:2
- LPCM 24 bits, 48 kHz, 4 channels (Recording/Playback 2 channels)
- XAVC-I QFHD MPEG-4 H.264/AVC:
- 59.94P CBG, bit rate 600 Mb/s;
- 50P CBG, bit rate 500 Mb/s;
- 29.97P CBG, bit rate 300 Mb/s;
- 23.98P CBG, bit rate 240 Mb/s;
- 25P CBG, bit rate 250 Mb/s;
- XAVC-I HD MPEG-4 H.264/AVC:
- 59.94P VBR, maximum bit rate 222 Mb/s;
- 50P VBR, maximum bit rate 185 Mb/s;
- 59.94i VBR, maximum bit rate 111 Mb/s;
- 50i VBR, maximum bit rate 112 Mb/s;
- 29.97p VBR, maximum bit rate 111 Mb/s;
- 23.98p VBR, maximum bit rate 89 Mb/s;
- 25p VBR, maximum bit rate 112 Mb/s;
- XAVC-L QFHD MPEG-4 H.264/AVC:
- 59.94p/50p mode: VBR, maximum bit rate 150 Mb/s;
- 29.97p/23.98p/25p mode: VBR, maximum bit rate 100 Mb/s;
- mXAVC-L HD 50 MPEG-4 H.264/AVC: VBR, maximum bit rate 50 Mb/s;
- XAVC-L HD 35 MPEG-4 H.264/AVC VBR, maximum bit rate 35 Mb/s;
- XAVC-L HD 25 MPEG-4 H.264/AVC: VBR, maximum bit rate 25 Mb/s;
- MPEG-2 Long GOP: CBR, maximum bit rate 50 Mbps, MPEG-2 422P@HL;
- XAVC-I QFHD 3840 x 2160/ 59.94p, 50p, 29.97p, 23.98p, 25p;
- XAVC-I HD: 1920 x 1080/59.94p, 50p, 59.94i, 50i, 29.97p, 23.98p, 25p;
- XAVC-L QFHD 50: 3840 x 2160/59.94p, 50p, 29.97p, 23.98p, 25p;
- XAVC-L 35: 1920 x 1080/59.94p, 50p, 59.94i, 50i, 29.97p, 23.98p, 25p;
- MPEG-2 Long GOP:
- 1920 x 1080/59.94i, 50i, 29.97p, 23.98p, 25p
- 1280 x 720/59.94p, 50p, 29.97p, 23.98p, 25p;
- XAVC-I QFHD:3840 x 2160/ 59.94p, 50p, 29.97p, 23.98p, 25p;
- XAVC-I HD:1920 x 1080/59.94p, 50p, 59.94i, 50i, 29.97p, 23.98p, 25p;
- XAVC-L QFHD:3840 x 2160/59.94p, 50p, 29.97p, 23.98p, 25p;
- XAVC-L HD 50: 1920 x 1080/59.94p, 50p, 59.94i, 50i, 29.97p, 23.98p, 25p;
- XAVC-L 35; 1920 x 1080/59.94p, 50p, 59.94i, 50i, 29.97p, 23.98p, 25p;
- XAVC-L 25; 1920 x 1080/59.94i, 50i;
- MPEG-2 Long GOP MPEG HD422:
- 1920 x 1080/59.94i, 50i, 29.97p, 23.98p, 25p;
- 1280 x 720/59.94p, 50p, 29.97p, 23.98p, 25p;
- XAVC-I mode 3840 x 2160: 1 to 60 frames (59.94p, 50p, 29.97p, 23.98p, 25p);
- XAVC-I mode 1920 x 1080: 1 to 180 frames (59.94p, 29.97p, 23.98p);
- XAVC-I mode 1920 x 1080: 1 to 150 frames (50p, 25p);
- XAVC-L mode 3840 x 2160: 1 to 60 frames (59.94p, 50p, 29.97p, 23.98p, 25p);
- XAVC-L mode 1920 x 1080: 1 to 120 frames (59.94p, 50p, 29.97p, 23.98p, 25p);
- XAVC-I mod QFHD 59.94p:
- QD-G128A (128 GB): Approx. 22 minutes;
- QD-G64A (64 GB) Approx. 11 minutes;
- XAVC-I mod QFHD 50p:
- QD-G128A (128 GB): Approx. 26 minutes;
- QD-G64A (64 GB) Approx. 13 minutes;
- XAVC-I mod QFHD 29.97p:
- QD-G128A (128 GB): Approx. 44 minutes;
- QD-G64A (64 GB) Approx. 22 minutes;
- XAVC-I mod QFHD 23.98p:
- QD-G128A (128 GB): Approx. 55 minutes;
- QD-G64A (64 GB) Approx. 27 minutes;
- XAVC-I mod QFHD 25p:
- QD-G128A (128 GB): Approx. 52 minutes;
- QD-G64A (64 GB) Approx. 26 minutes;
- XAVC-I mod HD 59.94p:
- QD-G128A (128 GB): Approx. 59 minutes;
- QD-G64A (64 GB) Approx. 30 minutes;
- XAVC-I mod HD 50p:
- QD-G128A (128 GB): Approx. 71 minutes;
- QD-G64A (64 GB) Approx. 35 minutes;
- XAVC-I mod HD 59.94i:
- QD-G128A (128 GB): Approx. 118 minutes;
- QD-G64A (64 GB) Approx. 59 minutes;
- XAVC-I mod HD 50i:
- QD-G128A (128 GB): Approx. 141 minutes;
- QD-G64A (64 GB) Approx. 70 minutes;
- XAVC-I mod HD 29.97p:
- QD-G128A (128 GB): Approx. 118 minutes;
- QD-G64A (64 GB) Approx. 59 minutes;
- XAVC-I mod HD 23.98p:
- QD-G128A (128 GB): Approx. 147 minutes;
- QD-G64A (64 GB) Approx. 74 minutes;
- XAVC-I mod HD 25p:
- QD-G128A (128 GB): Approx. 141 minutes;
- QD-G64A (64 GB) Approx. 70 minutes;
- XAVC-L mod QFHD 59.94p/50p:
- QD-G128A (128 GB): Approx. 87 minutes;
- QD-G64A (64 GB) Approx. 44 minutes;
- XAVC-L mod QFHD 29.97p/23.98p/25p:
- QD-G128A (128 GB): Approx. 131 minutes;
- QD-G64A (64 GB) Approx. 66 minutes;
- XAVC-L 50 mod:
- QD-G128A (128 GB): Approx. 262 minutes;
- QD-G64A (64 GB) Approx. 131 minutes;
- XAVC-L 35 mod:
- QD-G128A (128 GB): Approx. 374 minutes;
- QD-G64A (64 GB) Approx. 187 minutes;
- XAVC-L 25 mod:
- QD-G128A (128 GB): Approx. 524 minutes;
- QD-G64A (64 GB) Approx. 262 minutes;
- MPEG HD422 mod:
- QD-G128A (128 GB): Approx. 262 minutes;
- QD-G64A (64 GB) Approx. 131 minutes;
- 2 x XQD; 1 x SD (doar pentru configurarea datelor)
- Audio Input: 2 x 3-pin XLR; Line/mic/mic +48;
- Mic Reference: -40. -50. -60 dBu;
- SDI Output: 2 x BNC HD/3G-SDI;
- SMTPE292M/424M/425M;
- HDMI 2.0: 1 x Type A;
- USB: USB device, miniB;
- Casti: 1 x Stereo mini jack; -16 dBu 16 Ohms
- Telecomanda: Stereo mini jack (Φ2.5 mm)
- Multi-Interface (MI)
- 12 V DC
- Approx. 19 W (XAVC-I QFHD 59.94p, SELP28135G Lens, Viewfinder ON)
- BP-U30: Approx. 1 hr XAVC-I QFHD 59.94p, SELP28135G Lens, Viewfinder ON
- BP-U60: Approx. 2 hr XAVC-I QFHD 59.94p, SELP28135G Lens, Viewfinder ON
- BP-U90: Approx. 3 hr XAVC-I QFHD 59.94p, SELP28135G Lens, Viewfinder ON
- De la 0°C la +40°C
- De la -20°C la 60°C
- 156 x 239 x 247 mm
- 2.0 kg: doar Body
Sony PXW-FS7 II XDCAM Super 35 Camera System; Capac body; Viewfinder; Eyepiece; Grip Remote Control; Wireless Adaptor Bracket; BC-U1 Battery Charger; BP-U30 Lithium-Ion Battery; 2 x cablu alimentare; USB Cable; Viewfinder LCD; Parasolar; Garantie 1 an
